CXA2055P - Preamplifier for High Resolution Computer Display

Sony Corporation

📥 Download Datasheet

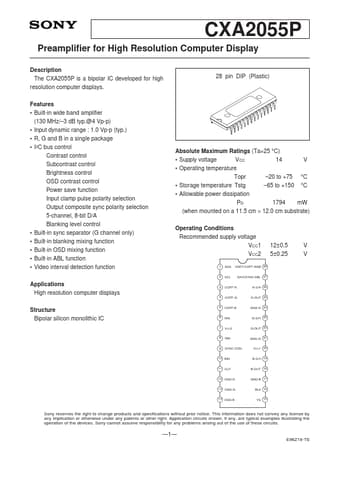

CXA2055P Datasheet Preview — Preview of CXA2055P PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	CXA2055P
Manufacturer	Sony Corporation
File Size	295.21 KB
Description	Preamplifier for High Resolution Computer Display
Datasheet	CXA2055P_SonyCorporation.pdf

CXA2055P Product details

Description

The CXA2055P is a bipolar IC developed for high resolution computer displays.

Features

Built-in wide band amplifier (130 MHz/.
3 dB typ. @4 Vp-p).
Input dynamic range : 1.0 Vp-p (typ. ).
R, G and B in a single package.
I2C bus control Contrast control Subcontrast control Brightness control OSD contrast control Power save function Input clamp pulse polarity selection Output composite sync polarity selection 5-channel, 8-bit D/A Blanking level control.
Built-in sync separator (G channel only).
Built-in blanking mixing funct.
