CXA2021S - I2C BUS Sound Processor for TV

CXA2021S Description

CXA2021S I2C BUS Sound Processor for TV .
The CXA2021S is a bipolar IC developed as an I2C BUS control sound processor for TV.

CXA2021S Features

* I2C BUS control
* The AGC circuit is adopted to absorb volume differences between input sources and improve the S/N ratio in hearing. Absolute Maximum Ratings
* Supply voltage VCC 14 V
* Operating temperature Topr
* 20 to +75 °C
* Storage temperature

CXA2021S Applications

* TVs V Pin Configuration LOUT CH-L DET1 CL-L HPO SDA 12 11 VRS L-IN Vcc HPI PS 22 21 20 19 18 17 16 15 14 13 1 2 3 4 5 6 7 8 9 10 CL-R BAL VOL ROUT GND BASS CH-R TRE DET2 Sony reserves the right to change products and specifications without prior notice. This info

📥 Download Datasheet

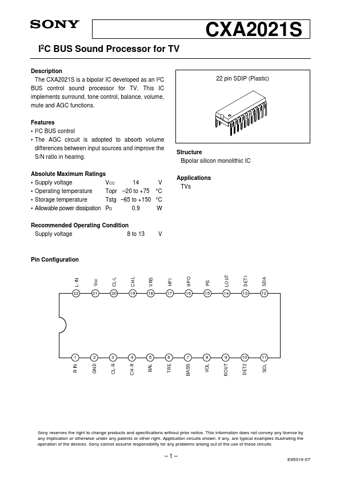

Preview of CXA2021S PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
CXA2021S
Manufacturer
Sony Corporation
File Size
274.76 KB
Datasheet
CXA2021S_SonyCorporation.pdf
Description
I2C BUS Sound Processor for TV
