CXA2019AQ - NTSC/PAL Chroma Decoder

Name: CXA2019AQ
SKU: CXA2019AQ-199358

Sony Corporation

📥 Download Datasheet

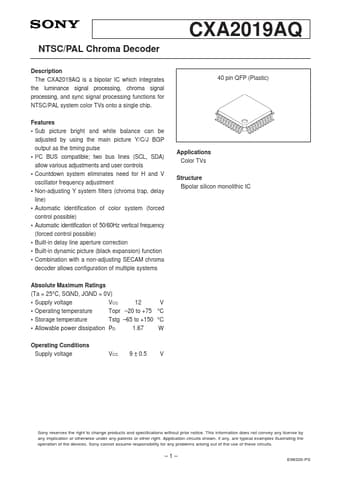

CXA2019AQ Datasheet Preview — Preview of CXA2019AQ PDF

Datasheet Details

Part number	CXA2019AQ
Manufacturer	Sony Corporation
File Size	400.04 KB
Description	NTSC/PAL Chroma Decoder
Datasheet	CXA2019AQ_SonyCorporation.pdf

CXA2019AQ Product details

Description

The CXA2019AQ is a bipolar IC which integrates the luminance signal processing, chroma signal processing, and sync signal processing functions for NTSC/PAL system color TVs onto a single chip.

Features

Sub picture bright and white balance can be adjusted by using the main picture Y/C/J BGP output as the timing pulse.
I2C BUS compatible; two bus lines (SCL, SDA) allow various adjustments and user controls.
Countdown system eliminates need for H and V oscillator frequency adjustment.
Non-adjusting Y system filters (chroma trap, delay line).
Automatic identification of color system (forced control possible).
Automatic identification of 50/60H.
