CXA1910Q - Dolby B Type Noise Reduction System with Playback Equalizer

Sony Corporation

📥 Download Datasheet

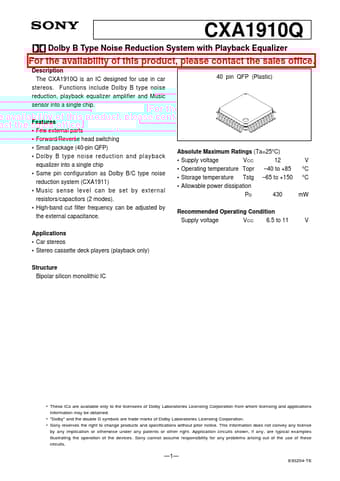

CXA1910Q Datasheet Preview — Preview of CXA1910Q PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	CXA1910Q
Manufacturer	Sony Corporation
File Size	387.08 KB
Description	Dolby B Type Noise Reduction System with Playback Equalizer
Datasheet	CXA1910Q_SonyCorporation.pdf

CXA1910Q Product details

Description

The CXA1910Q is an IC designed for use in car stereos.

Features

Few external parts.
Forward/Reverse head switching.
Small package (40-pin QFP).
Dolby B type noise reduction and playback equalizer into a single chip.
Same pin configuration as Dolby B/C type noise reduction system (CXA1911).
Music sense level can be set by external resistors/capacitors (2 modes).
High-band cut filter frequency can be adjusted by the external capacitance.
