CXA1853AQ - RGB Driver for LCD

Sony Corporation

📥 Download Datasheet

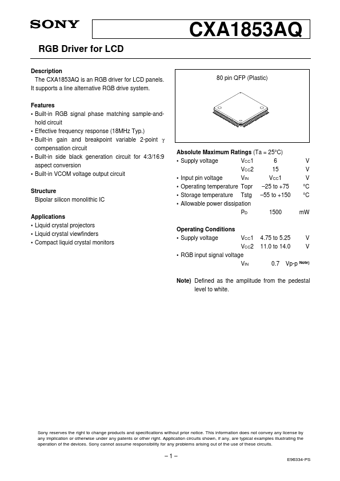

CXA1853AQ Datasheet Preview — Preview of CXA1853AQ PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	CXA1853AQ
Manufacturer	Sony Corporation
File Size	699.18 KB
Description	RGB Driver for LCD
Datasheet	CXA1853AQ_SonyCorporation.pdf

CXA1853AQ Product details

Description

The CXA1853AQ is an RGB driver for LCD panels.

Features

Built-in RGB signal phase matching sample-andhold circuit.
Effective frequency response (18MHz Typ. ).
Built-in gain and breakpoint variable 2-point γ compensation circuit.
Built-in side black generation circuit for 4:3/16:9 aspect conversion.
Built-in VCOM voltage output circuit Structure Bipolar silicon monolithic IC.
