CXA1622M - Stereo Power Amplifier/Monaural BTL Power Amplifier

Name: CXA1622M
SKU: CXA1622M-199188

Sony Corporation

📥 Download Datasheet

CXA1622M Datasheet Preview — Preview of CXA1622M PDF

Datasheet Details

Part number	CXA1622M
Manufacturer	Sony Corporation
File Size	215.25 KB
Description	Stereo Power Amplifier/Monaural BTL Power Amplifier
Datasheet	CXA1622M_SonyCorporation.pdf

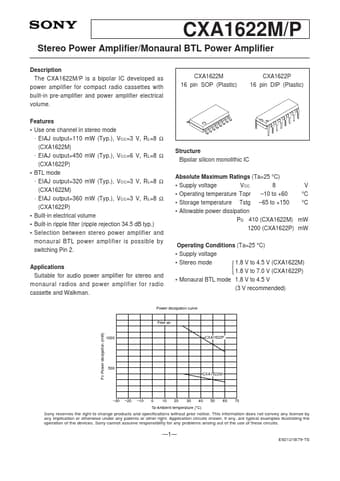

CXA1622M Product details

Description

The CXA1622M/P is a bipolar IC developed as power amplifier for compact radio cassettes with built-in pre-amplifier and power amplifier electrical volume.

Features

Use one channel in stereo mode.
EIAJ output=110 mW (Typ. ), VCC=3 (CXA1622M).
EIAJ output=450 mW (Typ. ), VCC=6 (CXA1622P).
BTL mode.
EIAJ output=320 mW (Typ. ), VCC=3 (CXA1622M).
EIAJ output=360 mW (Typ. ), VCC=3 CXA1622M 16 pin SOP (Plastic) CXA1622P 16 pin DIP (Plastic) V, RL=8 Ω V, RL=8 Ω Structure Bipolar silicon monolithic IC Absolute Maximum Ratings (Ta=25 °C).
Supply voltage VCC 8 V.
Operating temperature Topr.
10 to +60 °C.
