SLA-24VDC-SL-C - Power Relay

Name: SLA-24VDC-SL-C
SKU: SLA-24VDC-SL-C-1257342

Songle

The SLA-24VDC-SL-C by Songle is a Power Relay. Below is the official datasheet preview.

Datasheet Details

Part number	SLA-24VDC-SL-C
Manufacturer	Songle
File Size	167.46 KB
Description	Power Relay
Datasheet	SLA-24VDC-SL-C-Songle.pdf

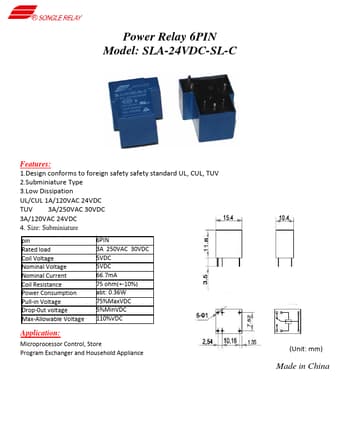

Additional preview pages of the SLA-24VDC-SL-C datasheet.

1.Design conforms to foreign safety safety standard UL, CUL, TUV 2.Subminiature Type 3.Low Dissipation UL/CUL 1A/120VAC 24VDC TUV 3A/250VAC 30VDC 3A/120VAC 24VDC 4. Size: Subminiature pin Rated load Coil Voltage Nominal Voltage Nominal Current Coil Resistance Power Consumption Pull-in Voltage Drop-0ut voltage Max-Allowable Voltage 6PIN 3A 250VAC 30VDC 5VDC 5VDC 66.7mA 75 ohm(+-10%) abt: 0.36W 75%MaxVDC 5%MinVDC 110%VDC.
