9 [+] Q1 2
1
7 [~]
Q2 5
6 8 [-]
PIN CONNECTIONS
PIN
DESCRIPTION
1
S1
2
G1
3
n/c
4
n/c
5
G2
6
S2
7
AC
8
N
9
P

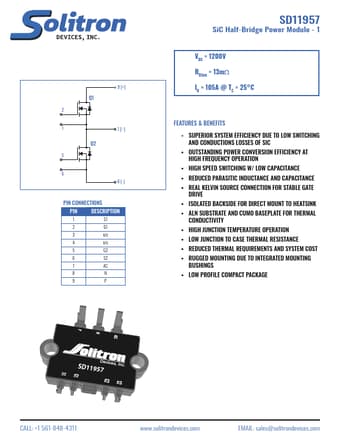

SD11957
SiC Half-Bridge Power Module - 1
VDS = 1200V
RDSon = 13mΩ
ID = 105A @ TC = 25°C
FEATURES & BENEFITS • SUPERIOR SYSTEM EFFICIENCY DUE TO LOW SWITCHING AND CONDUCTIONS LOSSES OF SIC • OUTSTANDING POWER CONVERSION EFFICIENCY AT HIGH FREQUENCY OPERATION • HIGH SPEED SWITCHING W/ LOW CAPACITANCE • REDUCED PARASITIC INDUCTANCE AND CAPACITANCE • REAL KELVIN SOURCE CONNECTION FOR STABLE GATE DRIVE • ISOLATED BACKSIDE FOR DIRECT MOUNT TO HEATSINK • ALN SUBSTRATE AND CUMO BASEPLATE FOR THERMAL CONDUCTIVITY • HIGH JUNCTION TEMPERATURE OPERATION • LOW JUNCTION TO CASE THERMAL RESISTANCE • REDUCED THERMAL REQUIREMENTS AND SYSTEM COST • RUGGED MOUNTING DUE TO INT
