SRE12UF, SRE10UF Datasheet - Solid States Devices

SRE12UF HIGH REVERSE ENERGY ABSORPTION CAPABILITY ULTRA FAST RECTIFIER

Solid State Devices, Inc. 14701 Firestone Blvd La Mirada, Ca 90638 Phone: (562) 404-4474 Fax: (562) 404-1773 ssdi@ssdi-power.com www.ssdi-power.com SRE10UF-SRE15UF and SRE10UFSMS-SRE15UFSMS 0.75 AMP 1000 1500 Volts 50-70 nsec HIGH REVERSE ENERGY ABSORPTION CAPABILITY DESIGNER’S DATA SHEET Part Number / Ordering Information 1/ SRE __ UF ___ __ ⏐ ⏐ ⏐ ⏐ ⏐ ⏐ ⏐ L ⏐ ⏐ ⏐ ⏐ ⏐ L ⏐ ⏐ ⏐ ⏐ L L Screening = None TX = TX Level TXV = TXV Level S = S Level 2/ Package ULTRA FA.

SRE12UF Features

* Ultra Fast Recovery: 50-70 nsec Max. High Reverse Energy Absorption Capability Single Chip Construction PIV to 1500 Volts Low Reverse Leakage Current Available in Surface Mount versions Metallurgically Bonded TX, TXV, a

SRE10UF_SolidStatesDevices.pdf

This datasheet PDF includes multiple part numbers: SRE12UF, SRE10UF. Please refer to the document for exact specifications by model.

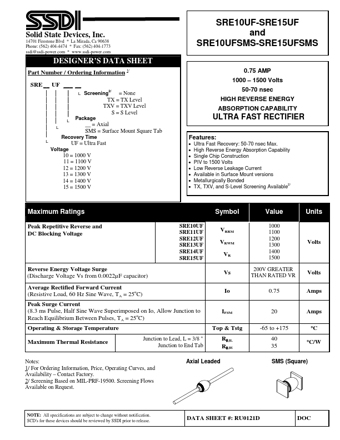

SRE12UF Datasheet Preview Page 2

Datasheet Details

Part number:

SRE12UF, SRE10UF

Manufacturer:

Solid States Devices

File Size:

95.67 KB

Description:

High reverse energy absorption capability ultra fast rectifier.

Note:

This datasheet PDF includes multiple part numbers: SRE12UF, SRE10UF.
Please refer to the document for exact specifications by model.
