SFS1829, SFS1826 (SFS1826 - SFS1829) SILICON CONTROLLED RECTIFIER

Solid States Devices

Description

SFS1826 thru SFS1829 Solid State Devices, Inc.14830 Valley View Blvd * La Mirada, Ca 90638 Phone: (562) 404-7855 * Fax: (562) 404-1773 ssdi@s.

📥 Download Datasheet

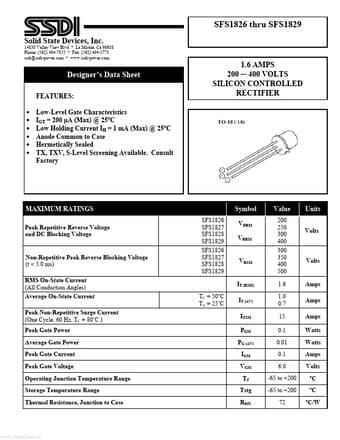

SFS1829 Datasheet Preview — This datasheet PDF includes multiple part numbers: SFS1829, SFS1826. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: SFS1829, SFS1826
Manufacturer: Solid States Devices
File Size: 126.17 KB
Datasheet: SFS1826_SolidStatesDevices.pdf
Description: (SFS1826 - SFS1829) SILICON CONTROLLED RECTIFIER
Note: This datasheet PDF includes multiple part numbers: SFS1829, SFS1826.
Please refer to the document for exact specifications by model.

Features

* Low-Level Gate Characteristics IGT = 200 µA (Max) @ 25oC Low Holding Current IH = 1 mA (Max) @ 25oC Anode Common to Case Hermetically Sealed TX, TXV, S-Level Screening Available. Consult Factory 1.6 AMPS 200 ─ 400 VOLTS SILICON CONTROLLED
