M291 Relay

Solid State Optronics

M291 Description

M291 1 Form A 50V / 100mΩ MOSFET Output Solid State Relay .
The M291 is a bi-directional, single-pole, single-throw, normally open multipurpose solid-state relay in a miniature 4-pin small outline package.

M291 Features

* Low On Resistance (70m TYP)
* High Continuous Load Current (2A MAX)
* High Input-to-Output Isolation (1500V MIN)
* Ultra Miniature 4SOP Package
* Long Life / High Reliability
* RoHS / Pb-Free / REACH Compliant Agency Approvals UL/C-UL: VDE: File # E201932 File # 4003519

M291 Applications

* The M291 has an extremely low on resistance of 70m (TYP) and a very high continuous load current rating of up to 2A. The combination of low onresistance, small package outline and high load current capabilities make the M291 a unique, unparalleled solid state relay. The M291 comes standard in a 4

📥 Download Datasheet

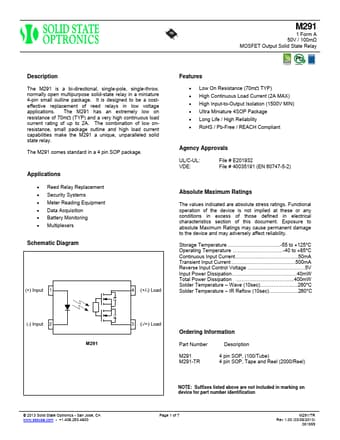

M291 Datasheet Preview — Preview of M291 PDF

Datasheet Details

Part number: M291
Manufacturer: Solid State Optronics
File Size: 279.13 KB
Datasheet: M291-SolidStateOptronics.pdf
Description: Relay
