SMA4123 - Solid State Relay

Description

The SMA4123 is a single-pole, single-throw, normally open multipurpose solid state relay.

The circuit is composed of an infra-red LED on the input side optically coupled to a Photo Diode Array which drives back-to-back low on resistance enhancement type DMOS transistors on the output.

Features

  • High Load Current (2.2A MAX).
  • Low Input Control Current (1.5mA TYP).
  • Low On Resistance (160mΩ TYP).
  • High Input-to-Output Isolation (5kV option).
  • Long Life / High Reliability.
  • RoHS / Pb-Free / REACH Compliant Agency Approvals UL/C-UL: VDE: File # E90096 File # 40035191 (EN 60747-5-2) Absolute Maximum Ratings The values indicated are absolute stress ratings. Functional operation of the device is not implied at these or any conditions in ex.

📥 Download Datasheet

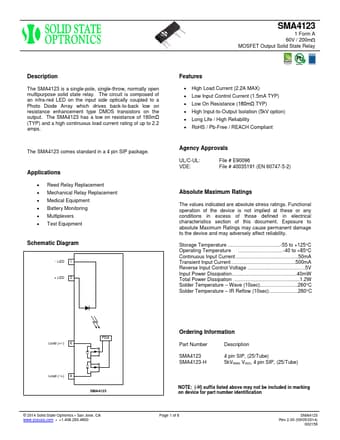

Datasheet preview – SMA4123

Datasheet Details

Part number SMA4123
Manufacturer Solid State Optronic
File Size 207.64 KB
Description Solid State Relay
Datasheet download datasheet SMA4123 Datasheet
Additional preview pages of the SMA4123 datasheet.

📁 Similar Datasheet

  • SMA4105 - Single Digit Numeric Displays (ETC)
  • SMA41056 - Single Digit Numeric Displays (ETC)
  • SMA411 - 10 TO 400 MHz CASCADABLE AMPLIFIER (Tyco Electronics)
  • SMA40 - SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR (MIC)
  • SMA4001 - SURFACE MOUNT SILICON RECTIFIER (Wing Shing Computer Components)
  • SMA4001GS1A - SURFACE MOUNT SILICON RECTIFIER (Wing Shing Computer Components)
  • SMA4001GS1A-M1 - SURFACE MOUNT SILICON RECTIFIER (Wing Shing Computer Components)
  • SMA4002 - SURFACE MOUNT SILICON RECTIFIER (Wing Shing Computer Components)
  • SMA4002GS1A - SURFACE MOUNT SILICON RECTIFIER (Wing Shing Computer Components)
  • SMA4002GS1A-M1 - SURFACE MOUNT SILICON RECTIFIER (Wing Shing Computer Components)
Other Datasheets by Solid State Optronic

Full PDF Text Transcription

Click to expand full text
SMA4123 1 Form A 60V / 200mΩ MOSFET Output Solid State Relay Description The SMA4123 is a single-pole, single-throw, normally open multipurpose solid state relay. The circuit is composed of an infra-red LED on the input side optically coupled to a Photo Diode Array which drives back-to-back low on resistance enhancement type DMOS transistors on the output. The SMA4123 has a low on resistance of 160mΩ (TYP) and a high continuous load current rating of up to 2.2 amps. The SMA4123 comes standard in a 4 pin SIP package. Applications • Reed Relay Replacement • Mechanical Relay Replacement • Medical Equipment • Battery Monitoring • Multiplexers • Test Equipment Schematic Diagram - LED 1 + LED 2 Features • High Load Current (2.2A MAX) • Low Input Control Current (1.
