SG8080 - IGBT Gate Drive Optocoupler

Solid State Optronic

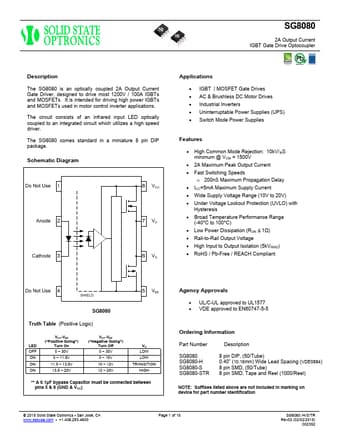

The SG8080 by Solid State Optronic is a IGBT Gate Drive Optocoupler. Below is the official datasheet preview.

📥 Download Datasheet

SG8080 IGBT Gate Drive Optocoupler by Solid State Optronic - Datasheet Preview — Official preview page of the **SG8080** IGBT Gate Drive Optocoupler datasheet (Solid State Optronic).

Datasheet Details

Part number	SG8080
Manufacturer	Solid State Optronic
File Size	745.14 KB
Description	IGBT Gate Drive Optocoupler
Datasheet	SG8080-SolidStateOptronic.pdf
Additional preview pages of the SG8080 datasheet.

SG8080 Product details

Description

The SG8080 is an optically coupled 2A Output Current Gate Driver, designed to drive most 1200V / 100A IGBTs and MOSFETs. IGBT / MOSFET Gate Drives AC & Brushless DC Motor

Features

High Common Mode Rejection: 10kV/S minimum @ VCM = 1500V.
2A Maximum Peak Output Current.
Fast Switching Speeds o 200nS Maximum Propagation Delay.
ICC=5mA Maximum Supply Current.
Wide Supply Voltage Range (10V to 20V).
Under Voltage Lockout Protection (UVLO) with Hysteresis.
Broad Temperature Performance Range (-40°C to 100°C).
Low Power Dissipation (RON ≤ 1Ω).
Rail-to-Rail Output Voltage.
High Input to Output Isolation (5kVRMS).
RoHS / Pb.
