Si4825-A10 - BROADCAST MECHANICAL TUNING AM/FM/SW RADIO RECEIVER

Description

The Si4825 is the entry level mechanical-tuned digital CMOS AM/FM/SW radio receiver IC that integrates the complete receiver function from antenna input to audio output.

Features

  • Worldwide FM band support (64.
  • 109 MHz).
  • Worldwide AM band support (504.
  • 1750 kHz).
  • SW band support (2.3.
  • 28.5 MHz).
  • No manual alignment necessary.
  • Mono audio output.
  • Selectable support AM/FM/SW regional bands.
  • Enhanced FM/SW band coverage.
  • Automatic frequency control (AFC).
  • Integrated LDO regulator.
  • 2.0 to 3.6 V supply voltage.
  • Wide range of ferrite loop sticks and air loop antennas supported.
  • 16-pin SOIC.

📥 Download Datasheet

Datasheet Details

Part number Si4825-A10
Manufacturer Skyworks
File Size 1.29 MB
Description BROADCAST MECHANICAL TUNING AM/FM/SW RADIO RECEIVER
Datasheet download datasheet Si4825-A10 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
Si4825-A10 BROADCAST MECHANICAL TUNING AM/FM/SW RADIO RECEIVER Silicon Laboratories
SI4825DY P-Channel MOSFET Vishay Siliconix
Si4820-A10 BROADCAST MECHANICAL TUNING AM/FM/SW RADIO RECEIVER Silicon Laboratories
Si4822-A10 BROADCAST ANALOG TUNING DIGITAL DISPLAY AM/FM/SW RADIO RECEIVER Silicon Laboratories
Si4824-A10 BROADCAST MECHANICAL TUNING AM/FM/SW RADIO RECEIVER Silicon Laboratories

Other Datasheets by Skyworks

Part Number Description
Si4112 DUAL-BAND RF SYNTHESIZER
Si4113 DUAL-BAND RF SYNTHESIZER
Si4122 DUAL-BAND RF SYNTHESIZER
Si4123 DUAL-BAND RF SYNTHESIZER
Si4133 DUAL-BAND RF SYNTHESIZER

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

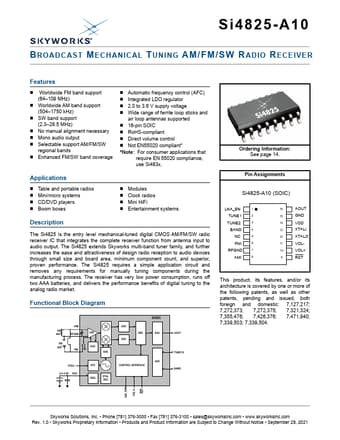

Si4825-A10 BROADCAST MECHANICAL TUNING AM/FM/SW RADIO RECEIVER Features  Worldwide FM band support (64–109 MHz)  Worldwide AM band support (504–1750 kHz)  SW band support (2.3–28.5 MHz)  No manual alignment necessary  Mono audio output  Selectable support AM/FM/SW regional bands  Enhanced FM/SW band coverage  Automatic frequency control (AFC)  Integrated LDO regulator  2.0 to 3.6 V supply voltage  Wide range of ferrite loop sticks and air loop antennas supported  16-pin SOIC  RoHS-compliant  Direct volume control  Not EN55020 compliant* *Note: For consumer applications that require EN 55020 compliance, use Si483x.
