DMJ4103-099 - Schottky Diode Quad Mixer Chips Supplied on Film Frame

Description

This Skyworks family of Si Schottky diodes are configured as bridge quads intended for use in double-balanced mixers.

Each bridge quad die is comprised of four Schottky junctions.

Features

  • Designed for high-performance, double-balanced mixers.
  • Three barrier heights available.
  • Schottky diodes supplied 100% tested, sawn, mounted on film frame.
  • Low cost.
  • Available lead (Pb)-free, RoHS-compliant, and Green.

📥 Download Datasheet

Datasheet Details

Part number DMJ4103-099
Manufacturer Skyworks
File Size 298.96 KB
Description Schottky Diode Quad Mixer Chips Supplied on Film Frame
Datasheet download datasheet DMJ4103-099 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
DMJ70H1D0SV3 N-Channel MOSFET INCHANGE
DMJ70H1D0SV3 N-CHANNEL MOSFET DIODES
DMJ70H1D3SH3 N-CHANNEL MOSFET Diodes
DMJ70H1D3SH3 N-Channel MOSFET INCHANGE
DMJ70H1D3SI3 N-CHANNEL MOSFET Diodes

Other Datasheets by Skyworks

Part Number Description
DMJ4103 Silicon Beamless Schottky Diodes
DMJ2088-000 Silicon Beam-Lead Schottky Mixer Diode Bondable Beam-Lead Devices
DMJ2088-225 Silicon Beam-Lead Schottky Mixer Diodes
DMJ2088-255 Silicon Beam-Lead Schottky Mixer Diodes
DMJ2092-000 Silicon Beam-Lead Schottky Mixer Diode Bondable Beam-Lead Devices

Full PDF Text Transcription

Click to expand full text

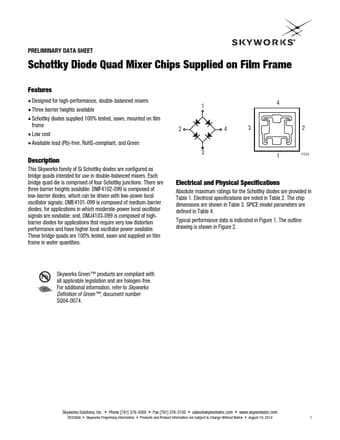

PRELIMINARY DATA SHEET Schottky Diode Quad Mixer Chips Supplied on Film Frame Features  Designed for high-performance, double-balanced mixers  Three barrier heights available  Schottky diodes supplied 100% tested, sawn, mounted on film frame  Low cost  Available lead (Pb)-free, RoHS-compliant, and Green Description This Skyworks family of Si Schottky diodes are configured as bridge quads intended for use in double-balanced mixers. Each bridge quad die is comprised of four Schottky junctions.
