AAT1171 - 600mA Voltage-Scaling Step-Down Converter

Features

  • The AAT1171 SwitchReg™ dynamically controls the operating voltage of a WCDMA or CDMA power amplifier inside single-cell, lithium-ion battery-powered systems. The AAT1171 outputs a voltage between 0.6V and 3.6V, thereby optimizing the amplifier efficiency at both low and high transmit levels. The AAT1171 output voltage is controlled via an analog signal from the baseband processor. It can deliver 600mA of continuous load current while maintaining a low 45μA of no load quiescent current. The 2MHz.

📥 Download Datasheet

Datasheet Details

Part number AAT1171
Manufacturer Skyworks
File Size 1.73 MB
Description 600mA Voltage-Scaling Step-Down Converter
Datasheet download datasheet AAT1171 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AAT1171 Voltage-Scaling Step-Down Converter AAT
AAT1176B MULTI-CHANNEL POWER SUPPLY Advanced Analog Technology
AAT1100 TRIPLE-CHANNEL PWM CONTROLLER Advanced Analogic Technologies
AAT1101 TRIPLE OUTPUT TFT LCD PWM CONTROLLER Advanced Analogic Technologies
AAT1102 ADVANCED PWM DC-DC CONVERTER Advanced Analog Technology

Other Datasheets by Skyworks

Part Number Description
AAT1147 Fast Transient 400mA Step-Down Converter
AAT1149A 2.2MHz Fast Transient 400mA Step-Down Converter
AAT1149B 2.2MHz Fast Transient 400mA Step-Down Converter
AAT1161 3A Step-Down Converter
AAT1184 High Voltage Step-Down Regulator

Full PDF Text Transcription

Click to expand full text

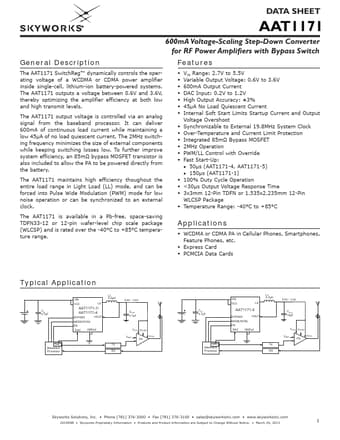

DATA SHEET AAT1171 600mA Voltage-Scaling Step-Down Converter for RF Power Amplifiers with Bypass Switch General Description Features The AAT1171 SwitchReg™ dynamically controls the operating voltage of a WCDMA or CDMA power amplifier inside single-cell, lithium-ion battery-powered systems. The AAT1171 outputs a voltage between 0.6V and 3.6V, thereby optimizing the amplifier efficiency at both low and high transmit levels. The AAT1171 output voltage is controlled via an analog signal from the baseband processor. It can deliver 600mA of continuous load current while maintaining a low 45μA of no load quiescent current. The 2MHz switching frequency minimizes the size of external components while keeping switching losses low.
