SC00680710 - Mis Chip Capacitors

Download the SC00680710 datasheet PDF (SC00080710 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for mis chip capacitors.

Description

Alpha’s MIS Chip Capacitors are available in a wide range of sizes and capacitance values.

They are frequently used in applications requiring DC blocking, and RF bypassing, or as a fixed capacitance tuning element in filters, oscillators, and matching networks.

Features

  • Readily Available From Stock.
  • High Reliability Silicon Oxide.
  • Nitride Dielectric.
  • Low Loss.
  • Typically 0.04 dB in a 50 Ω System.
  • Operation through 26 GHz.
  • Wide Temperature Operation Absolute Maximum Ratings Characteristic Operating Temp Range (TOP) Value -65 to +200°C -65 to +200°C 100 V.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (SC00080710_SkyworksSolutions.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number SC00680710
Manufacturer Skyworks Solutions
File Size 96.13 KB
Description Mis Chip Capacitors
Datasheet download datasheet SC00680710 Datasheet

📁 Similar Datasheet

  • SC016 - GENERAL USE RECTIFIER DIODE (Fuji Electric)
  • SC0163D - Charger Interface Physical Layer (Power Integrations)
  • SC017 - GENERAL USE RECTIFIER DIODE (Fuji Electric)
  • SC02J120A - SiC Schottky Diode (JILIN SINO)
  • SC04-11EWA - SINGLE DIGIT NUMERIC DISPLAY (Kingbright)
  • SC04J065A - SiC Schottky Diode (JILIN SINO)
  • SC05-11 - 12.7 MM SINGLE DIGIT NUMERIC DISPLAYS (Kingbright Corporation)
  • SC05-11EWA - 12.7mm SINGLE DIGIT NUMERIC DISPLAYS (Kingbright Corporation)
  • SC05-11GWA - 12.7mm SINGLE DIGIT NUMERIC DISPLAYS (Kingbright Corporation)
  • SC05-11SRWA - 12.7mm SINGLE DIGIT NUMERIC DISPLAYS (Kingbright Corporation)
Other Datasheets by Skyworks Solutions

Full PDF Text Transcription

Click to expand full text

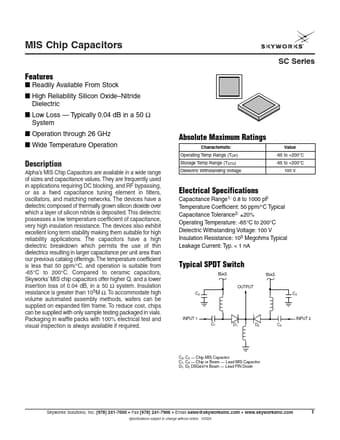

MIS Chip Capacitors SC Series Features ■ Readily Available From Stock ■ High Reliability Silicon Oxide–Nitride Dielectric ■ Low Loss — Typically 0.04 dB in a 50 Ω System ■ Operation through 26 GHz ■ Wide Temperature Operation Absolute Maximum Ratings Characteristic Operating Temp Range (TOP) Value -65 to +200°C -65 to +200°C 100 V Description Alpha’s MIS Chip Capacitors are available in a wide range of sizes and capacitance values. They are frequently used in applications requiring DC blocking, and RF bypassing, or as a fixed capacitance tuning element in filters, oscillators, and matching networks. The devices have a dielectric composed of thermally grown silicon dioxide over which a layer of silicon nitride is deposited.
