AAT3128 - RGB LED Fashion Lighting Controller

Description

The AAT3128 is a total solution controller for RGB LED fashion lighting.

A simplified control scheme greatly reduces design complexity and accelerates time to market.

The AAT3128 contains a high efficiency tri-mode charge pump DC/DC converter with 1X, 1.5X and 2X modes for color LED applications.

📥 Download Datasheet

Datasheet Details

Part number AAT3128
Manufacturer Skyworks Solutions
File Size 819.99 KB
Description RGB LED Fashion Lighting Controller
Datasheet download datasheet AAT3128 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AAT3120 3-Channel Charge Pump AAT
AAT3120 Three-Channel Charge Pump Skyworks
AAT3121 High Efficiency 1.5X Fractional Charge Pump Skyworks
AAT3122 High Efficiency 1X/1.5X Fractional Charge Pump AAT
AAT3122 High Efficiency 1X/1.5X Fractional Charge Pump Skyworks

Other Datasheets by Skyworks Solutions

Part Number Description
AAT3123 High Efficiency 1X/1.5X Fractional Charge Pump
AAT3123A High Efficiency 1X/1.5X Fractional Charge Pump
AAT3124 High Efficiency 1X/1.5X Fractional Charge Pump
AAT3110 MicroPower Regulated Charge Pump
AAT3111 MicroPower Regulated Charge Pump

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

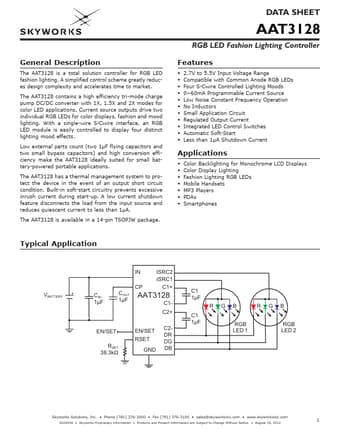

General Description The AAT3128 is a total solution controller for RGB LED fashion lighting. A simplified control scheme greatly reduces design complexity and accelerates time to market. The AAT3128 contains a high efficiency tri-mode charge pump DC/DC converter with 1X, 1.5X and 2X modes for color LED applications. Current source outputs drive two individual RGB LEDs for color displays, fashion and mood lighting. With a single-wire S2Cwire interface, an RGB LED module is easily controlled to display four distinct lighting mood effects. Low external parts count (two 1µF flying capacitors and two small bypass capacitors) and high conversion efficiency make the AAT3128 ideally suited for small battery-powered portable applications.
