04022Rxxxx, 0402CG330J500AA - SUrface Mount Ceramic Capacitor

📥 Download Datasheet

04022Rxxxx Datasheet Preview — This datasheet PDF includes multiple part numbers: 04022Rxxxx, 0402CG330J500AA. Please refer to the document for exact specifications by model.

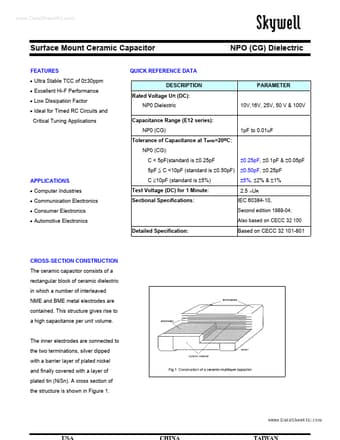

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	04022Rxxxx, 0402CG330J500AA
Manufacturer	Skywell Technology
File Size	337.16 KB
Description	SUrface Mount Ceramic Capacitor
Datasheet	0402CG330J500AA_SkywellTechnology.pdf
Note	This datasheet PDF includes multiple part numbers: 04022Rxxxx, 0402CG330J500AA. Please refer to the document for exact specifications by model.

04022Rxxxx Product details

Description

Rated Voltage UR (DC): NP0 Dielectric Capacitance Range (E12 series): NP0 (CG) NPO (CG) Dielectric PARAMETER 10V,16V, 25V, 50 V & 100V 1pF to 0.01uF Tolerance of Capacitance at Tamb=20ºC: NP0 (CG): C < 5pF(standard is ±0.25pF 5pF ≤ C

Features

Ultra Stable TCC of 0±30ppm.
Excellent Hi-F Performance.
Low Dissipation Factor.
Ideal for Timed RC Circuits and Critical Tuning.
