ST7735R 262K Color Single-Chip TFT Controller/Driver

ST7735R Description

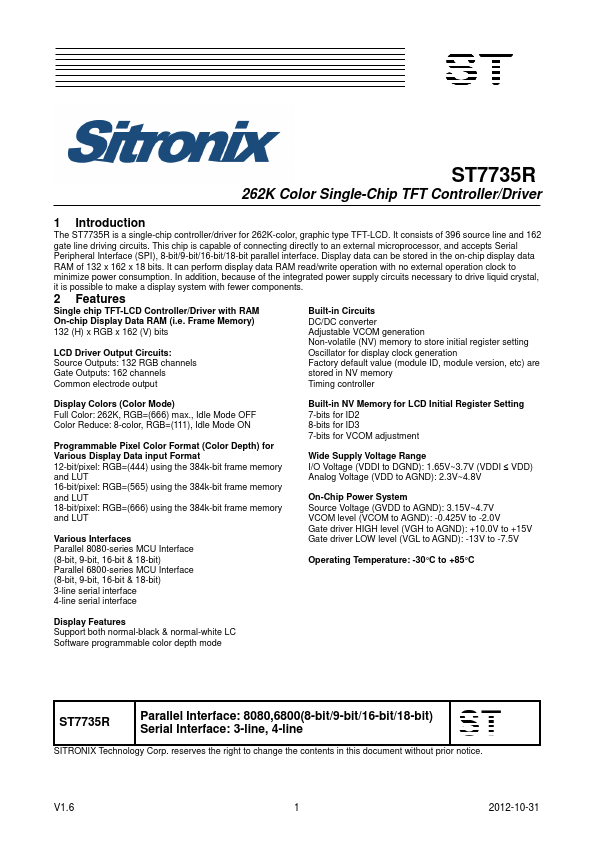

ST ST7735R 262K Color Single-Chip TFT Controller/Driver 1 Introduction The ST7735R is a single-chip controller/driver for 262K-color, graphic type .

ST7735R Features

* Single chip TFT-LCD Controller/Driver with RAM Built-in Circuits On-chip Display Data RAM (i. e. Frame Memory) DC/DC converter 132 (H) x RGB x 162 (V) bits Adjustable VCOM generation Non-volatile (NV) memory to store initial register setting LCD Driver Output Circuits: Oscillator for display

📥 Download Datasheet

Preview of ST7735R PDF

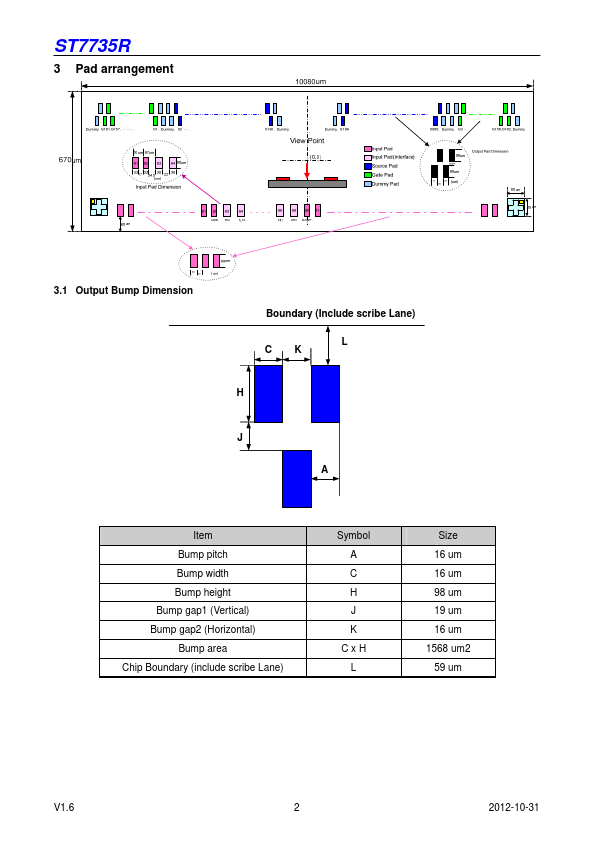

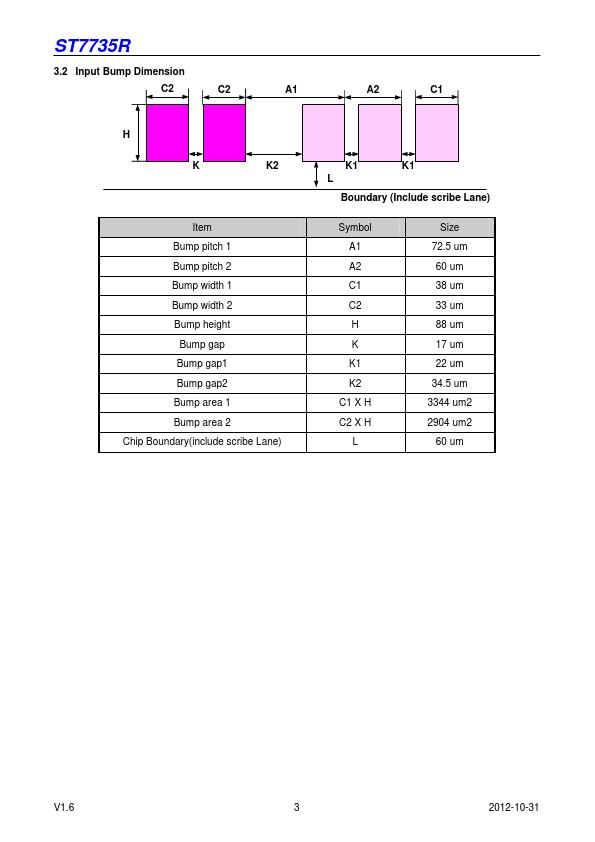

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ST7735R
Manufacturer
Sitronix
File Size
2.12 MB
Datasheet
ST7735R_Sitronix.pdf
Description
262K Color Single-Chip TFT Controller/Driver
