ST7045 - 1 x 320 Dot Palette LCD Controller/Driver

Name: ST7045
SKU: ST7045-1577959

Sitronix

The ST7045 by Sitronix is a 1 x 320 Dot Palette LCD Controller/Driver. Below is the official datasheet preview.

Datasheet Details

Part number	ST7045
Manufacturer	Sitronix
File Size	407.34 KB
Description	1 x 320 Dot Palette LCD Controller/Driver
Datasheet	ST7045-Sitronix.pdf
Additional preview pages of the ST7045 datasheet.

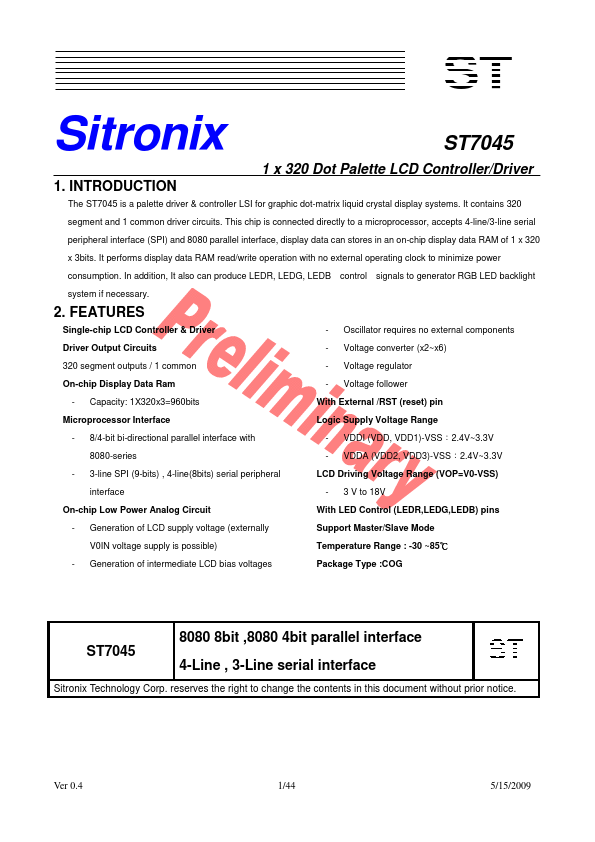

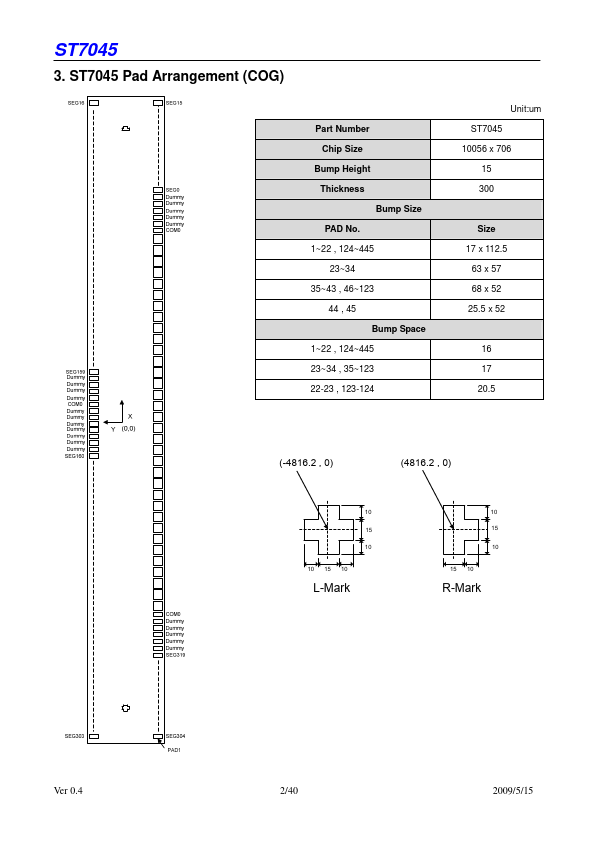

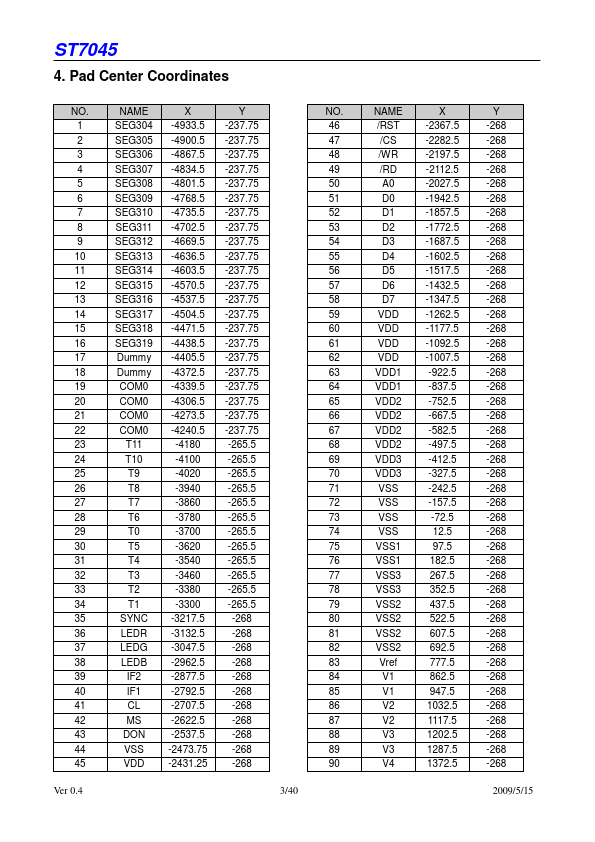

Single-chip LCD Controller & Driver - Oscillator requires no external components Driver Output Circuits - Voltage converter (x2~x6) 320 segment outputs / 1 common - Voltage regulator On-chip Display Data Ram - Voltage follower - Capacity: 1X320x3=960bits With External /RST (reset) pin Microprocessor Interface Logic Supply Voltage Range - 8/4-bit bi-directional parallel interface with - VDDI (VDD, VDD1)-VSS：2.4V~3.3V 8080-series - VDDA (VDD2, VDD3)-VSS：2.4V~3.3V - 3-line SPI (9-b.
