ST2601B 8-BIT Integrated Microcontroller

ST2601B Description

ST ST2601B PRELIMINARY 8 BIT Integrated Microcontroller with 128K Bytes ROM Notice: Sitronix Technology Corp.reserves the right to change the con.

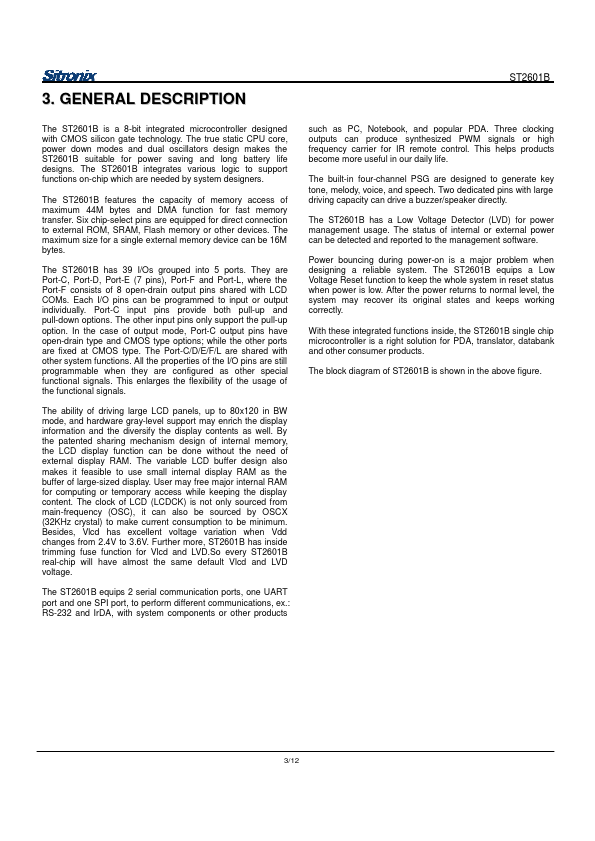

ST2601B The ST2601B is a 8-bit integrated microcontroller designed with CMOS silicon gate technology.

ST2601B Features

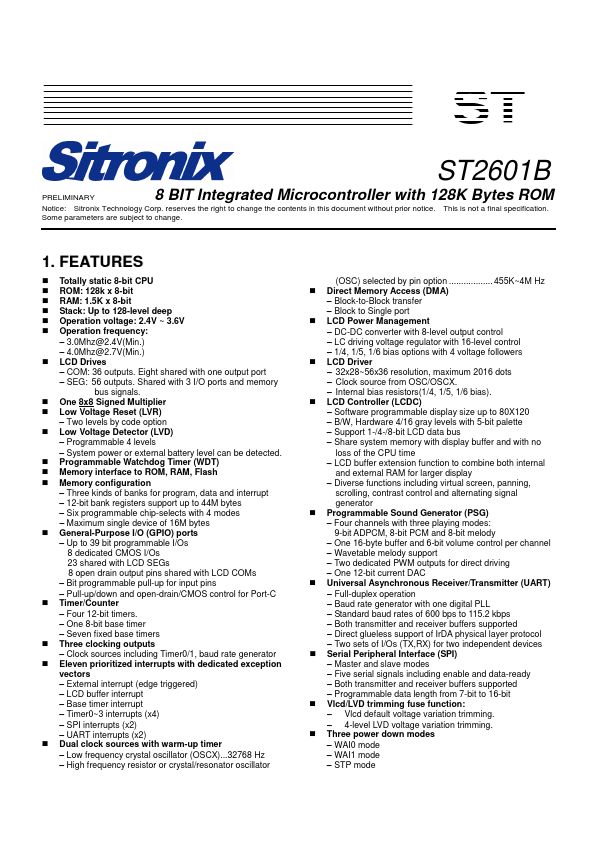

* n Totally static 8-bit CPU n ROM: 128k x 8-bit n RAM: 1.5K x 8-bit n Stack: Up to 128-level deep n Operation voltage: 2.4V ~ 3.6V n Operation frequency:
* 3.0Mhz@2.4V(Min. )
* 4.0Mhz@2.7V(Min. ) n LCD Drives
* COM: 36 outputs. Eight shared with one output port
* SEG: 56

📥 Download Datasheet

Preview of ST2601B PDF

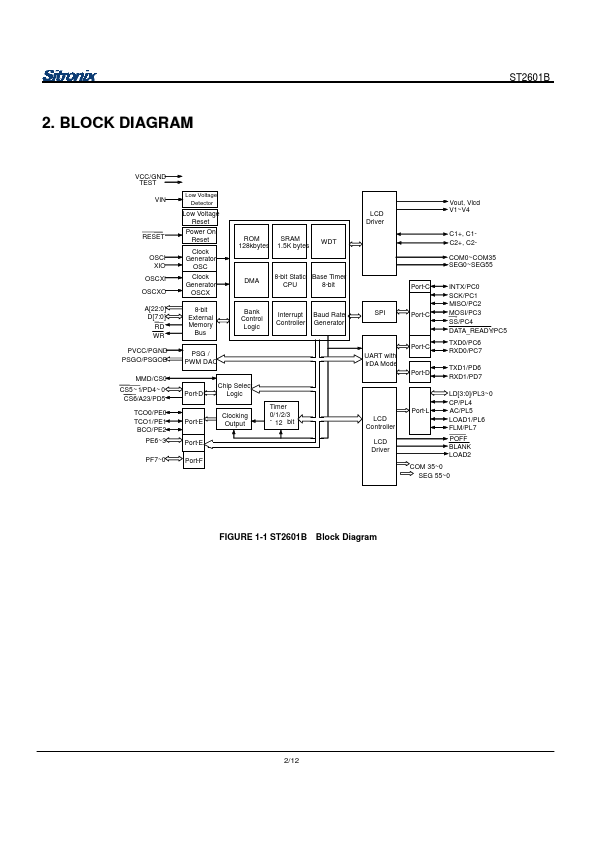

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ST2601B
Manufacturer
Sitronix
File Size
221.72 KB
Datasheet
ST2601B-Sitronix.pdf
Description
8-BIT Integrated Microcontroller
