SiT8008 - Low Power Programmable Oscillator

Sitime

📥 Download Datasheet

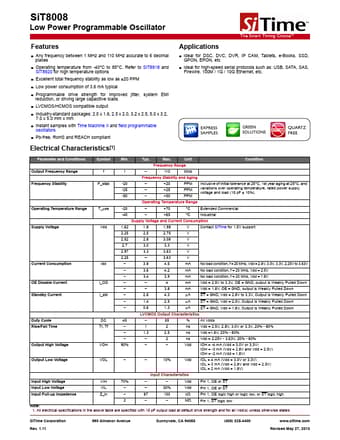

SiT8008 Datasheet Preview — Preview of SiT8008 PDF

Datasheet Details

Part number	SiT8008
Manufacturer	Sitime
File Size	694.99 KB
Description	Low Power Programmable Oscillator
Datasheet	SiT8008-Sitime.pdf

SiT8008 Product details

Description

Pin Symbol Functionality Output Enable H or Open[2]: specified frequency output L: output is high impedance.Only output driver is disabled.1 OE/ ST H or Open[2]: specified frequency output Standby L: output is low (weak pull down).Device goes to sleep mode.Supply current reduces to I_std.2 GND Power Electrical ground[3] 3 OUT Output Oscillator output 4 VDD Power Power supply voltage[3] Notes: 2. A pull-up resistor of

Features

Any frequency between 1 MHz and 110 MHz accurate to 6 decimal places.
Operating temperature from -40°C to 85°C. Refer to SiT8918 and SiT8920 for high temperature options.
Excellent total frequency stability as low as ±20 PPM.
Low power consumption of 3.6 mA typical.
Programmable drive strength for improved jitter, system EMI reduction, or driving large capacitive loads.
LVCMOS/HCMOS compatible output.
Industry-standard packages: 2.0 x 1.6, 2.5 x 2.0, 3.2 x 2.5.
