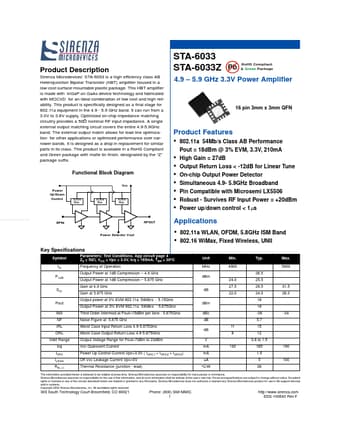

STA-6033 Datasheet (Sirenza Microdevices)

STA-6033, Power Amplifier

Sirenza Microdevices’ STA-6033 is a high efficiency class AB Heterojunction Bipolar Transistor (HBT) amplifier housed in a low-cost surface-mountable plastic package.

This HBT amplifier is made with InGaP on GaAs device technology and fabricated with MOCVD for an ideal combination of low cost and hi

STA-6033 Features

* 802.11a 54Mb/s Class AB Performance Pout = 18dBm @ 3% EVM, 3.3V, 210mA High Gain = 27dB Output Return Loss < -12dB for Linear Tune On-chip Output Power Detector Simultaneous 4.9- 5.9GHz Broadband Pi
