SGA-3386 - Cascadable SiGe HBT MMIC Amplifier

Name: SGA-3386
SKU: SGA-3386-581587

Sirenza Microdevices

The SGA-3386 by Sirenza Microdevices is a Cascadable SiGe HBT MMIC Amplifier. Below is the official datasheet preview.

Datasheet Details

Part number	SGA-3386
Manufacturer	Sirenza Microdevices
File Size	89.48 KB
Description	Cascadable SiGe HBT MMIC Amplifier
Datasheet	SGA-3386_SirenzaMicrodevices.pdf

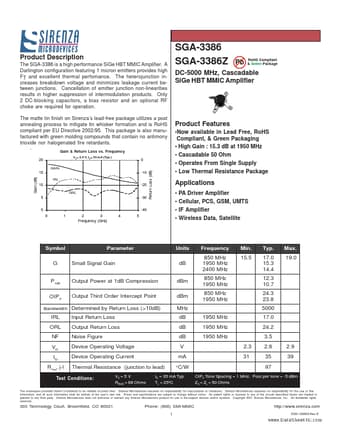

Additional preview pages of the SGA-3386 datasheet.

The SGA-3386 is a high performance SiGe HBT MMIC Amplifier.

Now available in Lead Free, RoHS Compliant, & Green Packaging.
High Gain : 15.3 dB at 1950 MHz.
Cascadable 50 Ohm.
Operates From Single Supply.
Low Thermal Resistance Package 20 GAIN 0 -10 Return Loss (dB) 15 Gain (dB) IRL 10 ORL -20 -30 -40 0 1 2 3 Frequency (GHz) 4 5.
