CGA-3318 - Dual CATV Broadband High Linearity SiGe HBT Amplifier

Description

Sirenza Microdevice’s CGA-3318 is a high performance Silicon Germanium HBT MMIC Amplifier.

Designed with SiGe process technology for excellent linearity at an exceptional price.

A Darlington configuration is utilized for broadband performance.

Features

  • Available in Lead free, RoHS compliant, & Green packaging.
  • Excellent CSO/CTB/XMOD Performance at.
  • +34 dBmV Output Power per Tone Dual Devices in each SOIC-8 Package simplify Push-Pull configuration PC board layout 5 to 900 MHz operation.

📥 Download Datasheet

Datasheet Details

Part number CGA-3318
Manufacturer Sirenza Microdevices
File Size 262.40 KB
Description Dual CATV Broadband High Linearity SiGe HBT Amplifier
Datasheet download datasheet CGA-3318 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
CGA-1518Z PUSH-PULL 50MHz to 1000MHz HIGH LINEARITY InGaP HBT AMPLIFIER RF Micro Devices
CGA-7718Z PUSH-PULL 50MHz to 1000MHz HIGH LINEARITY InGaP HBT AMPLIFIER RF Micro Devices
CGA1 MULTILAYER CERAMIC CHIP CAPACITORS TDK
CGA103450 LIGHTWEIGHT PRISMATIC MODEL Panasonic Semiconductor
CGA2 MULTILAYER CERAMIC CHIP CAPACITORS TDK

Other Datasheets by Sirenza Microdevices

Part Number Description
CGA-3318Z Dual CATV Broadband High Linearity SiGe HBT Amplifier
CGA-0116 3-Output Active Splitter
CGA-0116Z 3-Output Active Splitter
CGA-6618 Dual CATV 1 MHz to 1000 MHz High Linearity GaAs HBT Amplifier
CGA-6618Z Dual CATV 1 MHz to 1000 MHz High Linearity GaAs HBT Amplifier

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

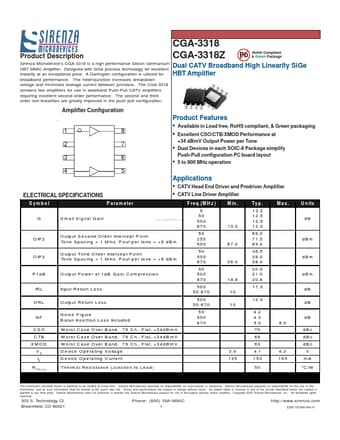

Product Description Sirenza Microdevice’s CGA-3318 is a high performance Silicon Germanium HBT MMIC Amplifier. Designed with SiGe process technology for excellent linearity at an exceptional price. A Darlington configuration is utilized for broadband performance. The heterojunction increases breakdown voltage and minimizes leakage current between junctions. The CGA-3318 contains two amplifiers for use in wideband Push-Pull CATV amplifiers requiring excellent second order performance. The second and third order non-linearities are greatly improved in the push pull configuration.
