SB3200 - (SB3150 / SB3200) Power Schottky Rectifier

Download the SB3200 datasheet PDF. This datasheet also covers the SB3150 variant, as both devices belong to the same (sb3150 / sb3200) power schottky rectifier family and are provided as variant models within a single manufacturer datasheet.

Features

  • s -Low forward voltage drop -High current capability -High reliability -High surge current capability -Epitaxial construction DO-27 / DO-201AD.
  • Mechanical data -Case：Molded plastic -Epoxy：UL 94V-0 rate flame retardant -Lead：Axial leads, solderable per MIL-STD-202,method 208 guaranteed -Polarity：Color band denotes cathode end -Mounting position：Any -Weight：1.10 grams .220(5.6) .197(5.0) 1.0(25.4) .052(1.3) .048(1.2).
  • Maximum ratings and Electrical characteristics TYPE Maxim.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (SB3150_Sirectifier.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number SB3200
Manufacturer Sirectifier
File Size 223.35 KB
Description (SB3150 / SB3200) Power Schottky Rectifier
Datasheet download datasheet SB3200 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SB3200 SCHOTTKY RECTIFIER SANGDEST
SB3200 (SB3150 / SB3200) Schottky Barrier Rectifiers LRC
SB3200 Schottky Diodes Kexin
SB3200 SCHOTTKY RECTIFIER SMC Diode
SB320 SCHOTTKY BARRIER RECTIFIERS PAN JIT

Other Datasheets by Sirectifier

Part Number Description
SB3150 (SB3150 / SB3200) Power Schottky Rectifier

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

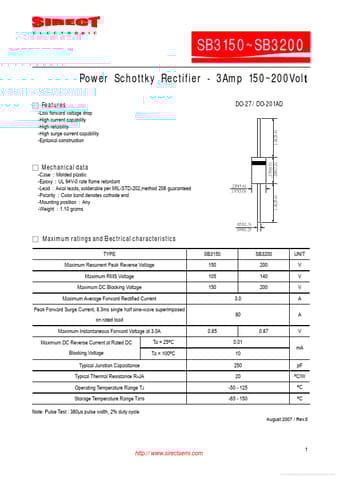

E L E C T R O N I C SB3150~SB3200 Power Schottky Rectifier - 3Amp 150~200Volt □ Features -Low forward voltage drop -High current capability -High reliability -High surge current capability -Epitaxial construction DO-27 / DO-201AD □ Mechanical data -Case：Molded plastic -Epoxy：UL 94V-0 rate flame retardant -Lead：Axial leads, solderable per MIL-STD-202,method 208 guaranteed -Polarity：Color band denotes cathode end -Mounting position：Any -Weight：1.10 grams .220(5.6) .197(5.0) 1.0(25.4) .052(1.3) .048(1.2) □ Maximum ratings and Electrical characteristics TYPE Maximum Recurrent Peak Reverse Voltage Maximum RMS Voltage Maximum DC Blocking Voltage Maximum Average Forward Rectified Current Peak Forward Surge Current, 8.
