SP4412A Electroluminescent Lamp Driver

SP4412A Description

® SP4412A Electroluminescent Lamp Driver s 2.2 V- 3.6 V Battery Operation s 50 nA Maximum Standby Current (10 nA typical) s High Voltage Output Typi.
The SP4412A is a high voltage output DC-AC converter that can operate from a 2.

SP4412A Features

* 10 nA (typical) standby current, for use in low power portable products. An inductor is used to generate the high voltage, and an external oscillator is needed as a clock source. The SP4412A is offered in an 8-pin narrow SOIC package or an 8-pin µSOIC package. For delivery in die form, please consul

📥 Download Datasheet

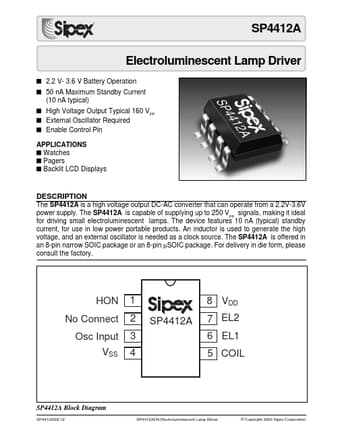

Preview of SP4412A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SP4412A
Manufacturer
Sipex
File Size
119.27 KB
Datasheet
SP4412A_SipexCorporation.pdf
Description
Electroluminescent Lamp Driver
