SP3486 +3.3V Low Power Quad RS-485/RS-422 Line Drivers

SP3486 Description

® SP3486 and SP3487 +3.3V Low Power Quad RS-485/RS-422 Line Drivers * RS-485 or RS-422 Quad Differential Line Drivers * Operates from a sing.
The SP3486 and the SP3487 are +3.

SP3486 Features

* a common driver enable control. The SP3487 provides independent driver enable controls for each pair of drivers. Both devices feature tri-state outputs and a -7V to +12V common-mode input voltage range. DI1 DO1A DO1B EN DO2B DO2A DI2 GND 1 SP3486 1 16 15 VCC DI4 DO4A DO4B EN DO3B DO3A DI3 DI1

SP3486 Applications

* or for long distance interfaces. RS-485 allows up to 32 drivers and 32 receivers to be connected to a data bus, making it an ideal choice for multi-drop applications. Since the cabling can be as long as 4,000 feet, RS-485 transceivers are equipped with a wide (-7V to +12V) common mode range to accom

📥 Download Datasheet

Preview of SP3486 PDF

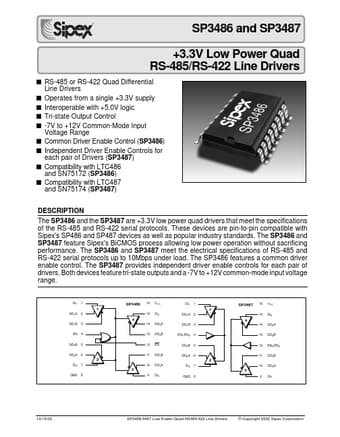

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SP3486
Manufacturer
Sipex
File Size
121.83 KB
Datasheet
SP3486_SipexCorporation.pdf
Description
+3.3V Low Power Quad RS-485/RS-422 Line Drivers
