3223ECY - SP3223ECY

Description

The SP3223 products are RS-232 transceiver solutions intended for portable applications such as notebook and hand held computers.

The SP3223 use an internal high-efficiency, charge-pump power supply that requires only 0.1µF capacitors in 3.3V operation.

Features

  • Meets true EIA/TIA-232-F Standards from a +3.0V to +5.5V power supply.
  • Interoperable with EIA/TIA-232 and adheres to EIA/TIA-562 down to a +2.7V power source.
  • AUTO ON-LINE® circuitry automatically wakes up from a 1µA shutdown.
  • Minimum 250Kbps data rate under load (EB).
  • 1 Mbps data rate for high speed RS-232 (EU).
  • Regulated Charge Pump Yields Stable RS-232 Outputs Regardless of VCC Variations.
  • ESD Specifications: +15KV Human Body Model +15KV IEC1000-4-2 Air Dis.

📥 Download Datasheet

Datasheet Details

Part number 3223ECY
Manufacturer Sipex Corporation
File Size 616.84 KB
Description SP3223ECY
Datasheet download datasheet 3223ECY Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
3223G Trimming Potentiometer Bourns
3223J Trimming Potentiometer Bourns
3223W Trimming Potentiometer Bourns
3220 Linear Low Density Polyethylene TAISOX
3220SL121KA Multilayer Chip Varistors HITANO

Other Datasheets by Sipex Corporation

Part Number Description

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

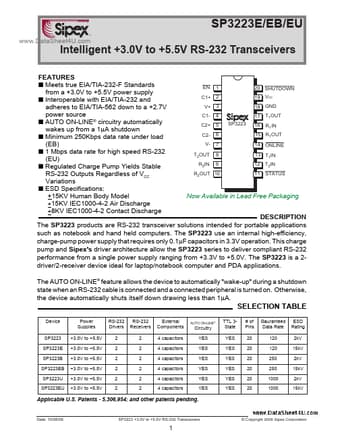

Solved by ® SP3223E/EB/EU SP3223E/EB/EU TM www.DataSheet4U.com Intelligent +3.0V to +5.5V RS-232 Transceivers Intelligent +3.0V to +5.5V RS-232 Transceivers EN 1 20 SHUTDOWN 19 VCC 18 GND 17 SP3223 16 T1OUT R1IN DESCRIPTION The SP3223 products are RS-232 transceiver solutions intended for portable applications such as notebook and hand held computers. The SP3223 use an internal high-efficiency, charge-pump power supply that requires only 0.1µF capacitors in 3.3V operation. This charge pump and Sipex's driver architecture allow the SP3223 series to deliver compliant RS-232 performance from a single power supply ranging from +3.3V to +5.0V. The SP3223 is a 2driver/2-receiver device ideal for laptop/notebook computer and PDA applications.
