SM4514NHKP - N-Channel MOSFET

Sinopower

The SM4514NHKP by Sinopower is a N-Channel MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

SM4514NHKP N-Channel MOSFET by Sinopower - Datasheet Preview — Official preview page of the **SM4514NHKP** N-Channel MOSFET datasheet (Sinopower).

Datasheet Details

Part number	SM4514NHKP
Manufacturer	Sinopower
File Size	171.96 KB
Description	N-Channel MOSFET
Datasheet	SM4514NHKP-Sinopower.pdf

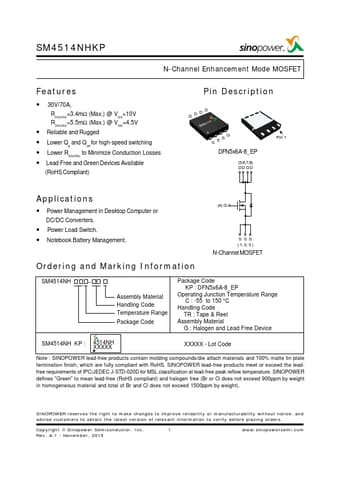

Additional preview pages of the SM4514NHKP datasheet.

SM4514NHKP Product details

Description

DDDD S S SG DFN5x6A-8_EP (5,6,7,8) DD DD Pin 1 Applications Power Management in Desktop Computer or DC/DC Converters. Power Load Switch. Notebook Battery Management.

Features

30V/70A, RDS(ON)=3.4mΩ (Max. ) @ VGS=10V RDS(ON)=5.5mΩ (Max. ) @ V =4.5V GS.
Reliable and Rugged.
Lower Qg and Qgd for high-speed switching.
Lower RDS(ON) to Minimize Conduction Losses.
Lead Free and Green Devices Available (RoHS Compliant) Pin.
