SM3430NHQA - N-Channel Enhancement Mode MOSFET

Sinopower

The SM3430NHQA by Sinopower is a N-Channel Enhancement Mode MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

SM3430NHQA N-Channel Enhancement Mode MOSFET by Sinopower - Datasheet Preview — Official preview page of the SM3430NHQA N-Channel Enhancement Mode MOSFET datasheet (Sinopower).

Datasheet Details

Part number	SM3430NHQA
Manufacturer	Sinopower
File Size	682.86 KB
Description	N-Channel Enhancement Mode MOSFET
Datasheet	SM3430NHQA-Sinopower.pdf

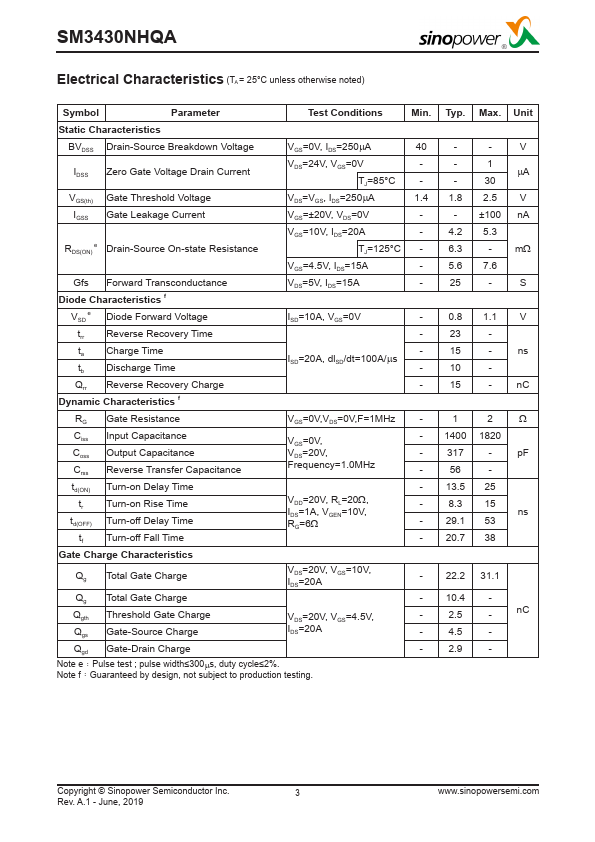

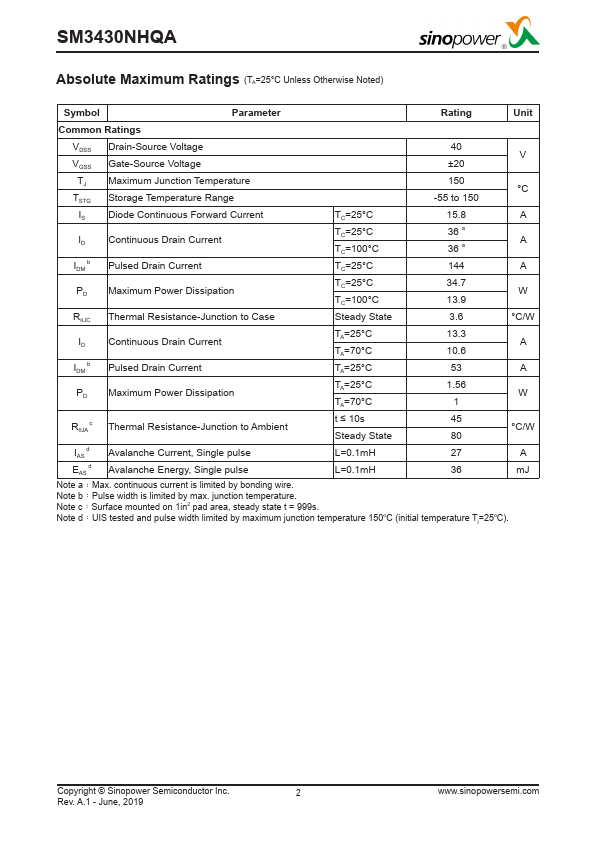

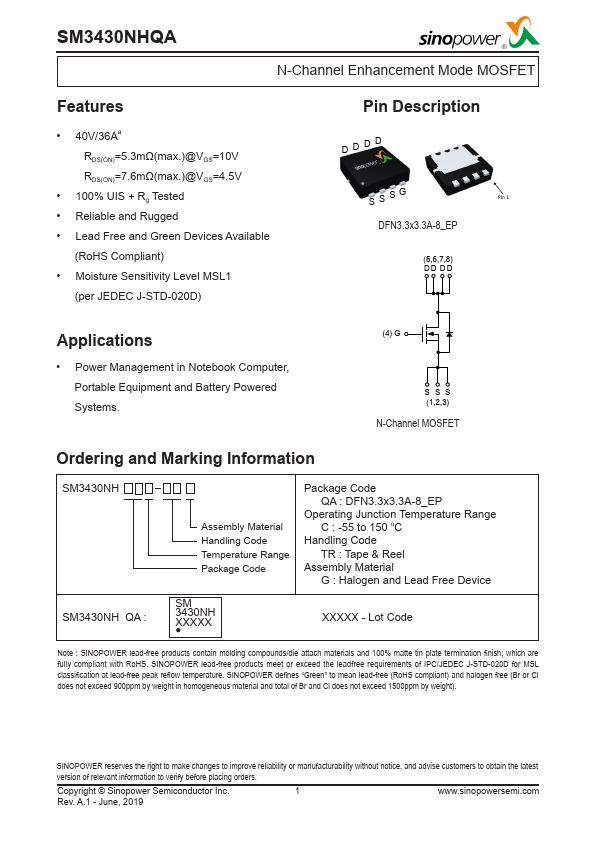

Additional preview pages of the SM3430NHQA datasheet.

SM3430NHQA Product details

Description

DDDD SS SG DFN3.3x3.3A-8_EP (5,6,7,8) DD DD Applications Power Management in Notebook Computer, Portable Equipment and Battery Powered Systems.

Features

40V/36Aa RDS(ON)=5.3mΩ(max. )@VGS=10V RDS(ON)=7.6mΩ(max. )@VGS=4.5V.
100% UIS + Rg Tested.
Reliable and Rugged.
Lead Free and Green Devices Available (RoHS Compliant).
Moisture Sensitivity Level MSL1 (per JEDEC J-STD-020D) Pin.
