SM2413PSAN - P-Channel MOSFET

Sinopower

📥 Download Datasheet

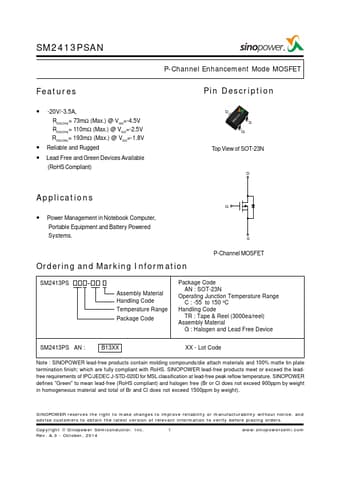

SM2413PSAN Datasheet Preview — Preview of SM2413PSAN PDF

Datasheet Details

Part number	SM2413PSAN
Manufacturer	Sinopower
File Size	162.94 KB
Description	P-Channel MOSFET
Datasheet	SM2413PSAN-Sinopower.pdf

SM2413PSAN Product details

Description

D S G Top View of SOT-23N D Applications Power Management in Notebook Computer, Portable Equipment and Battery Powered Systems.G S Ordering and Marking Information P-Channel MOSFET SM2413PS Assembly Material Handling Code Temperature Range Package Code Package Code AN : SOT-23N Operating Junction Temperature Range C : -55 to 150 oC Handling Code TR : Tape & Reel (3000ea/reel) Assembly Material G : Halogen and Lead Free Device SM2413PS AN : B13XX XX - Lot Code Note : SINOPOW

Features

-20V/-3.5A, RDS(ON)= 73mΩ (Max. ) @ VGS=-4.5V RDS(ON)= 110mΩ (Max. ) @ VGS=-2.5V R= DS(ON) 193mΩ (Max. ) @ V =-1.8V GS.
Reliable and Rugged.
Lead Free and Green Devices Available (RoHS Compliant) ® P-Channel Enhancement Mode MOSFET Pin.
