SM2213PSQG - P-Channel MOSFET

Sinopower

📥 Download Datasheet

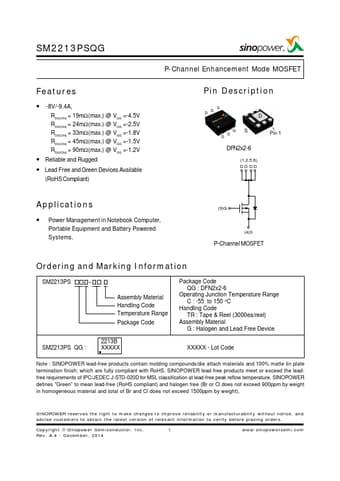

SM2213PSQG Datasheet Preview — Preview of SM2213PSQG PDF

Datasheet Details

Part number	SM2213PSQG
Manufacturer	Sinopower
File Size	180.80 KB
Description	P-Channel MOSFET
Datasheet	SM2213PSQG-Sinopower.pdf

SM2213PSQG Product details

Description

DS D D G D D S DFN2x2-6 (1,2,5,6) DD DD Pin 1 Applications Power Management in Notebook Computer, Portable Equipment and Battery Powered Systems.(3)G (4)S P-Channel MOSFET Ordering and Marking Information SM2213PS SM2213PS QG : Assembly Material Handling Code Temperature Range Package Code 2213B XXXXX Package Code QG : DFN2x2-6 Operating Junction Temperature Range C : -55 to 150 oC Handling Code TR : Tape & Reel (3000ea/reel) Assembly Material G : Halogen and Lead Free De

Features

-8V/-9.4A, R DS(ON) = 19mΩ(max. ) @ V GS =-4.5V RDS(ON) = 24mΩ(max. ) @ VGS =-2.5V RDS(ON) = 33mΩ(max. ) @ VGS =-1.8V R DS(ON) = 45mΩ(max. ) @ V GS =-1.5V RDS(ON) = 90mΩ(max. ) @ VGS =-1.2V.
Reliable and Rugged.
Lead Free and Green Devices Available (RoHS Compliant) ® P-Channel Enhancement Mode MOSFET Pin.
