MUR2005FCT, MUR2005CT - 20.0Amp Super Fast Rectifiers

The MUR2005FCT by Sinble Electronics is a 20.0Amp Super Fast Rectifiers. Below is the official datasheet preview.

Datasheet Details

Part number	MUR2005FCT, MUR2005CT
Manufacturer	Sinble Electronics
File Size	265.96 KB
Description	20.0Amp Super Fast Rectifiers
Datasheet	MUR2005CT-SinbleElectronics.pdf
Note	This datasheet PDF includes multiple part numbers: MUR2005FCT, MUR2005CT. Please refer to the document for exact specifications by model.

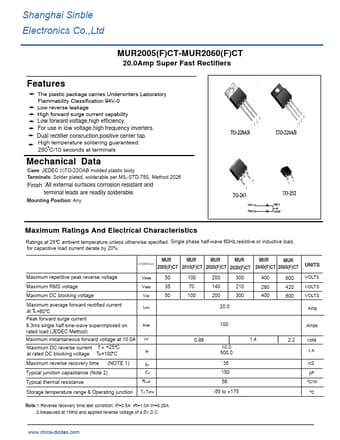

Additional preview pages of the MUR2005FCT datasheet.

The plastic package carries Underwriters Laboratory Flammability Classification 94V-0 Low reverse leakage High forward surge current capability Low forward voltage,high efficiency. For use in low voltage,high frequency inverters. Dual rectifier consruction,positive center tap. High temperature soldering guaranteed: 250 C/10 seconds at terminals Mechanical Data Case: JEDEC (I)TO-22OAB molded plastic body Terminals: Solder plated, solderable per MIL-STD-750, Method 2026 Finish :All external surfac.
