STK14C88 - 32Kx8 AutoStore nvSRAM

Simtek

📥 Download Datasheet

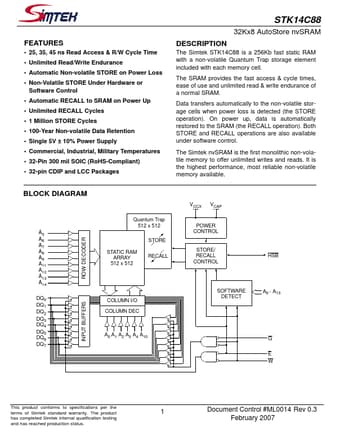

STK14C88 Datasheet Preview — Preview of STK14C88 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	STK14C88
Manufacturer	Simtek
File Size	287.26 KB
Description	32Kx8 AutoStore nvSRAM
Datasheet	STK14C88_Simtek.pdf

STK14C88 Product details

Description

The Simtek STK14C88 is a 256Kb fast static RAM with a non-volatile Quantum Trap storage element included with each memory cell.

Features

25, 35, 45 ns Read Access & R/W Cycle Time.
Unlimited Read/Write Endurance.
Automatic Non-volatile STORE on Power Loss.
Non-Volatile STORE Under Hardware or Software Control.
Automatic RECALL to SRAM on Power Up.
Unlimited RECALL Cycles.
1 Million STORE Cycles.
100-Year Non-volatile Data Retention.
Single 5V ± 10% Power Supply.
Commercial, Industrial, Military Temperatures.
32-Pin 300 mil SOIC (Ro.
