U631H64 - SoftStore 8K x 8 nvSRAM

Simtek Corporation

The U631H64 by Simtek Corporation is a SoftStore 8K x 8 nvSRAM. Below is the official datasheet preview.

📥 Download Datasheet

U631H64 SoftStore 8K x 8 nvSRAM by Simtek Corporation - Datasheet Preview — Official preview page of the U631H64 SoftStore 8K x 8 nvSRAM datasheet (Simtek Corporation).

Datasheet Details

Part number	U631H64
Manufacturer	Simtek Corporation
File Size	171.81 KB
Description	SoftStore 8K x 8 nvSRAM
Datasheet	U631H64_SimtekCorporation.pdf

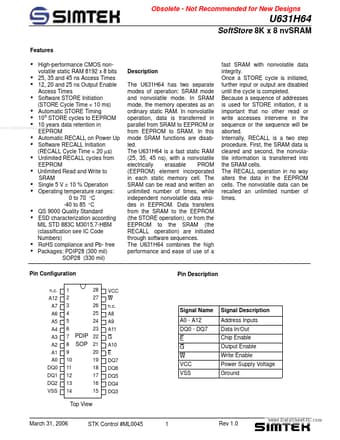

Additional preview pages of the U631H64 datasheet.

U631H64 Product details

Description

The U631H64 has two separate modes of operation: SRAM mode and nonvolatile mode.

Features

High-performance CMOS nonvolatile static RAM 8192 x 8 bits.
25, 35 and 45 ns Access Times.
12, 20 and 25 ns Output Enable Access Times.
Software STORE Initiation (STORE Cycle Time < 10 ms).
Automatic STORE Timing.
105 STORE cycles to EEPROM.
10 years data retention in www. DataSheet4U. com EEPROM.
Automatic RECALL on Power Up.
Software RECALL Initiation (RECALL Cycle Time < 20 μs).
Unlimited RECALL cycles from EEPROM.
