LC9801, LC9806 - (LC9801 / LC9806) Tone siren CMOS IC

Name: LC9801
SKU: LC9801-696203

Silvan Chip

📥 Download Datasheet

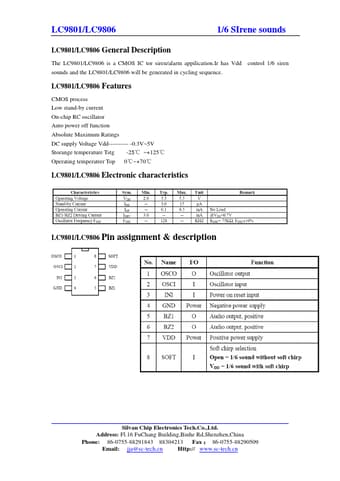

LC9801 Datasheet Preview — This datasheet PDF includes multiple part numbers: LC9801, LC9806. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	LC9801, LC9806
Manufacturer	Silvan Chip
File Size	152.72 KB
Description	(LC9801 / LC9806) Tone siren CMOS IC
Datasheet	LC9806_SilvanChip.pdf
Note	This datasheet PDF includes multiple part numbers: LC9801, LC9806. Please refer to the document for exact specifications by model.

LC9801 Product details

Description

The LC9801/LC9806 is a CMOS IC tor siren/alarm appilication.Ir has Vdd control 1/6 siren sounds and the LC9801/LC9806 will be generated in cycling sequence.

Features

CMOS process Low stand-by current On-chip RC oscillator Auto power off function Absolute Maximum Ratings DC supply Voltage Vdd---------- -0.3V~5V Storange temperature Tstg -25℃ ~+125℃ Operating temperatrer Top 0℃~+70℃ LC9801/LC9806 Electronic characteristics LC9801/LC9806 Pin assignment &.
