SLM8834 - 1.5A Thermoelectric Cooler Controller

Sillumin

The SLM8834 by Sillumin is a 1.5A Thermoelectric Cooler Controller. Below is the official datasheet preview.

📥 Download Datasheet

SLM8834 1.5A Thermoelectric Cooler Controller by Sillumin - Datasheet Preview — Official preview page of the SLM8834 1.5A Thermoelectric Cooler Controller datasheet (Sillumin).

Datasheet Details

Part number	SLM8834
Manufacturer	Sillumin
File Size	842.00 KB
Description	1.5A Thermoelectric Cooler Controller
Datasheet	SLM8834-Sillumin.pdf

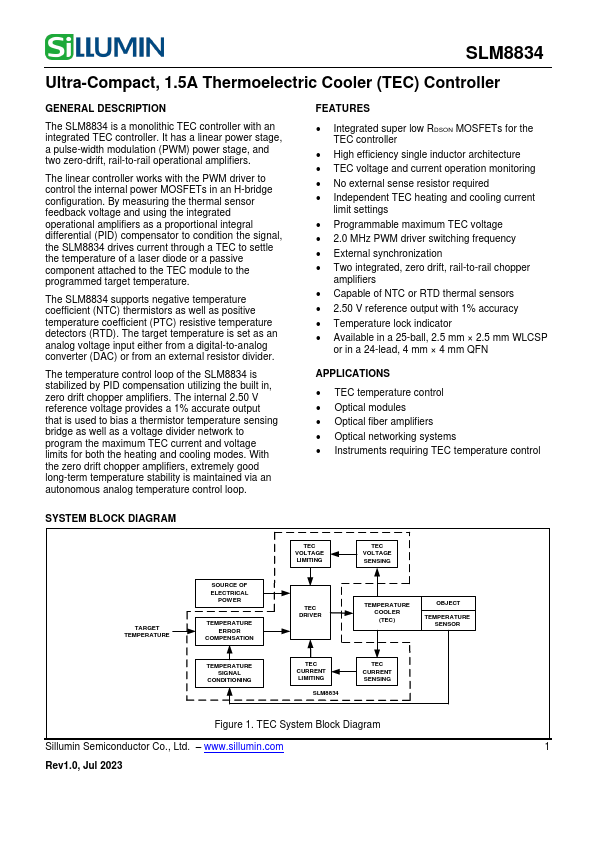

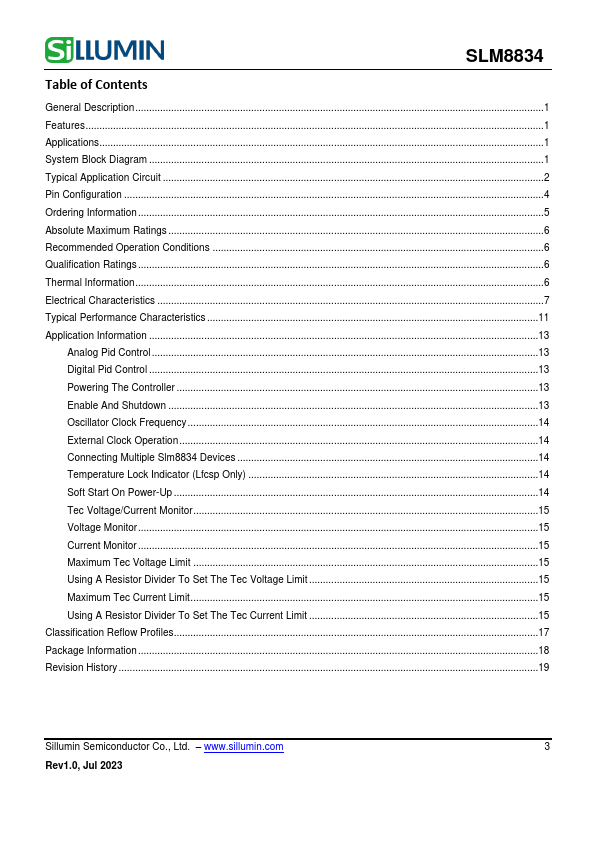

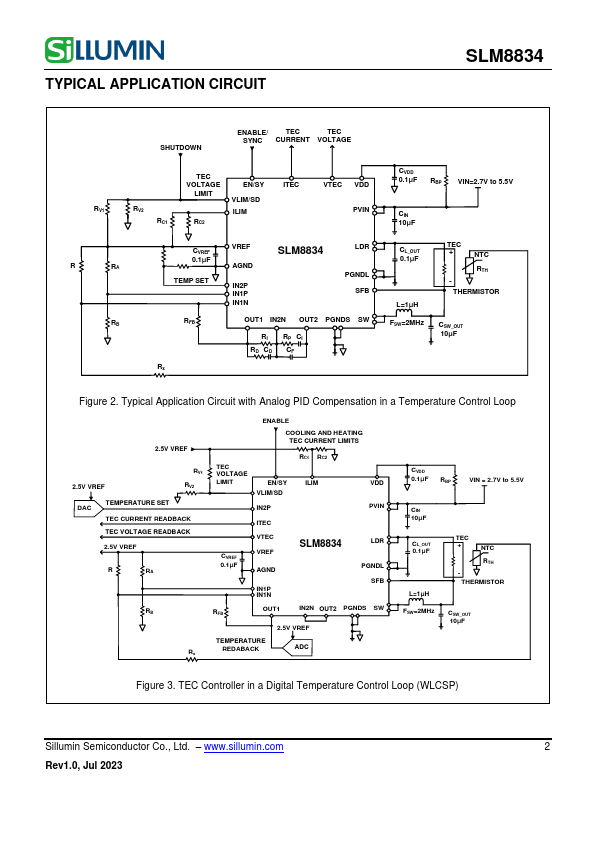

Additional preview pages of the SLM8834 datasheet.

SLM8834 Product details

Description

The SLM8834 is a monolithic TEC controller with an integrated TEC controller.

Features

Integrated super low RDSON MOSFETs for the TEC controller.
High efficiency single inductor architecture.
TEC voltage and current operation monitoring.
No external sense resistor required.
Independent TEC heating and cooling current limit settings.
Programmable maximum TEC voltage.
2.0 MHz PWM driver switching frequency.
External synchronization.
Two integrated, zero drift, rail-to-rail chopper amplifiers.
