SLM21364 - 600V Three-Phase Bridge Driver

Description

VOFFSET IO+/ VOUT ton/off (typ.)

600 V max.

Features

  • Floating channel designed for bootstrap operation.
  • Fully operational to +600 V.
  • Tolerant to negative transient voltage, dV/dt immune.
  • Gate drive supply range from 10 V to 20 V.
  • Undervoltage lockout for all channels.
  • Low/high side output in phase with inputs.
  • 3.3 V, 5 V logic compatible.
  • Lower di/dt gate drive for better noise immunity.
  • Cross-conduction prevention logic.
  • Matched propagation delay for both channels.
  • Externally programmable de.

📥 Download Datasheet

Datasheet Details

Part number SLM21364
Manufacturer Sillumin
File Size 673.84 KB
Description 600V Three-Phase Bridge Driver
Datasheet download datasheet SLM21364 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SLM2012 Multilayer Power Inductor Sunltech
SLM23 Surface Mount LEDs Rohm
SLM23xx Molded Package Chip LEDs Rohm
SLM245 High Luminance Type Surface Mount LEDs Rohm
SLM2520 Multilayer Power Inductor Sunltech

Other Datasheets by Sillumin

Part Number Description
SLM2136 600V 3-Phase Bridge Driver
SLM2101S 600V Half Bridge Driver
SLM2103S 600V Half-Bridge Driver
SLM2104S 600V Half-Bridge Driver
SLM2106B High and Low Side Driver

Full PDF Text Transcription

Click to expand full text

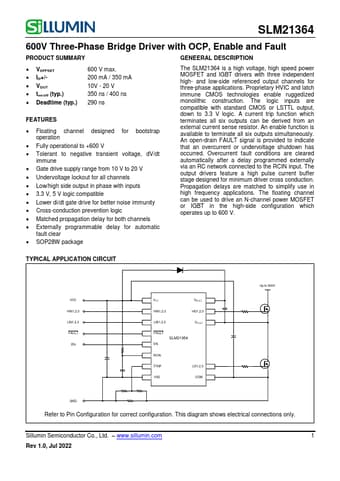

SLM21364 600V Three-Phase Bridge Driver with OCP, Enable and Fault PRODUCT SUMMARY GENEERAL DESCRIPTION  VOFFSET  IO+/ VOUT  ton/off (typ.)  Deadtime (typ.) 600 V max. 200 mA / 350 mA 10V - 20 V 350 ns / 400 ns 290 ns FEATURES  Floating channel designed for bootstrap operation  Fully operational to +600 V  Tolerant to negative transient voltage, dV/dt immune  Gate drive supply range from 10 V to 20 V  Undervoltage lockout for all channels  Low/high side output in phase with inputs  3.
