SLM2108S - 600V Half-Bridge Driver

Description

The SLM2108S is a high voltage, high speed power MOSFET and IGBT drivers with dependent highand low-side referenced output channels.

Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction.

Features

  • Floating channel designed for bootstrap operation.
  • Fully operational to +600 V.
  • Tolerant to negative transient voltage, dV/dt immune.
  • Gate drive supply range from 10 V to 20 V.
  • Undervoltage lockout.
  • 3.3 V, 5 V, and 15 V logic compatible.
  • Cross-conduction prevention logic.
  • Matched propagation delay for both channels.
  • Internal 540 ns deadtime.
  • High-side output in phase with HIN input.
  • Low-side output out of phase with LIN input.
  • Logic an.

📥 Download Datasheet

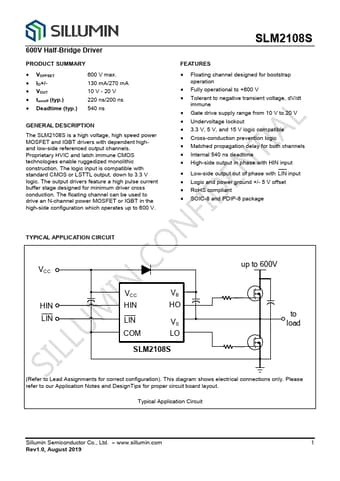

Datasheet preview – SLM2108S

Datasheet Details

Part number SLM2108S
Manufacturer Sillumin
File Size 3.42 MB
Description 600V Half-Bridge Driver
Datasheet download datasheet SLM2108S Datasheet
Additional preview pages of the SLM2108S datasheet.

📁 Similar Datasheet

  • SLM2012 - Multilayer Power Inductor (Sunltech)
  • SLM23 - Surface Mount LEDs (Rohm)
  • SLM23xx - Molded Package Chip LEDs (Rohm)
  • SLM245 - High Luminance Type Surface Mount LEDs (Rohm)
  • SLM2520 - Multilayer Power Inductor (Sunltech)
  • SLM2575 - 1 Amp DC-to-DC MiniConverters (Semtech)
  • SLM-1251 - High Luminance Type Surface Mount LEDs (Rohm)
  • SLM-13 - Surface Mount LEDs (Rohm)
  • SLM-13xx - Molded Package Chip LEDs (Rohm)
  • SLM-20T - High Linearity Low Noise Amplifier Module (Sirenza Microdevices)
Other Datasheets by Sillumin

Full PDF Text Transcription

Click to expand full text
600V Half-Bridge Driver PRODUCT SUMMARY  VOFFSET  IO+/ VOUT  ton/off (typ.)  Deadtime (typ.) 600 V max. 130 mA/270 mA 10 V - 20 V 220 ns/200 ns 540 ns GENERAL DESCRIPTION The SLM2108S is a high voltage, high speed power MOSFET and IGBT drivers with dependent highand low-side referenced output channels. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. The logic input is compatible with standard CMOS or LSTTL output, down to 3.3 V logic. The output drivers feature a high pulse current buffer stage designed for minimum driver cross conduction. The floating channel can be used to drive an N-channel power MOSFET or IGBT in the high-side configuration which operates up to 600 V.
