Datasheet Details
Part number:
KE4392, KE4391
Manufacturer:
Siliconix
File Size:
67.81 KB
Description:
N-channel jfet.
Note:
This datasheet PDF includes multiple part numbers: KE4392, KE4391.
Please refer to the document for exact specifications by model.

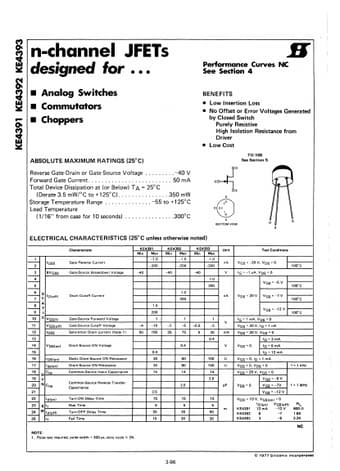

n-channel JFETs designed for H Performance Curves NC See Section 4 Analog Switches Commutators Choppers ABSOLUTE MAXIMUM RATINGS (25°C) Reverse Gate-Drain or Gate-Source Voltage -40 V Forward Gate Current _ 50 mA Total Device Dissipation at (or Below) TA = 25°C (Derate 3.5 mWrC to +125°C) 350 mW Storage Temperature Range -55 to +125°C Lead Temperature (1/16" from case for 10 seconds) 300°C BENEFITS Low Insertion Loss
