BF256LA - n-channel JFET

📥 Download Datasheet

Datasheet Details

Part number BF256LA
Manufacturer Siliconix
File Size 59.14 KB
Description n-channel JFET
Datasheet download datasheet BF256LA Datasheet

📁 Similar Datasheet

  • BF256LB - FET (ETC)
  • BF256LC - FET (ETC)
  • BF256 - VHF/UHF Amplifiers JFET (Motorola Inc)
  • BF256A - VHF/UHF Amplifiers JFET (Motorola Inc)
  • BF256A - N-Channel RF Amplifiers (Fairchild Semiconductor)
  • BF256A - N-Channel MOSFET (ON Semiconductor)
  • BF256B - VHF/UHF Amplifiers JFET (Motorola Inc)
  • BF256B - N-Channel RF Amplifiers (Fairchild Semiconductor)
  • BF256B - N-Channel JFET RF Amplifier (ON Semiconductor)
  • BF256C - VHF/UHF Amplifiers JFET (Motorola Inc)
Other Datasheets by Siliconix

Full PDF Text Transcription

Click to expand full text

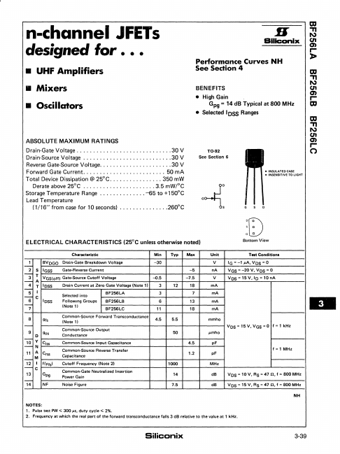

n-channel JFETs designed for • • • • UHF Amplifiers • Mixers • Oscillators H Slllcanlx Performance Curves NH See Sedion 4 BENEFITS • High Gain Gpg = 14 dB Typical at 800 MHz • Selected lOSS Ranges ABSOLUTE MAXIMUM RATINGS Drain-Gate Voltage _............................ 30 V Drain-Source Voltage ........................... 30 V Reverse Gate-Source Voltage...................... 30 V Forward Gate Current ......................... 50 mA Total Device Dissipation @ 25°C ................ 350 mW Derate above 25°C ...................... 3.5 mW/oC Storage Temperature Range .............. -65 to +150°C Lead Temperature (1/16" from case for 10 seconds) ............. , .
