1N5240D

The 1N5240D is 0.5W Zener Diode designed by Silicon Supplies.

Product Overview

Silicon Supplies

📥 Download Datasheet

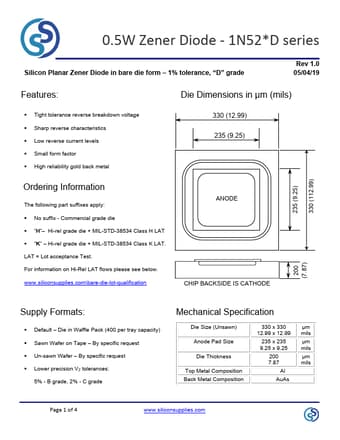

1N5240D 0.5W Zener Diode by Silicon Supplies - Datasheet Preview — Datasheet preview – 1N5240D

Datasheet Details

Part number	1N5240D, 1N5221D
Manufacturer	Silicon Supplies
File Size	188.45 KB
Description	0.5W Zener Diode
Datasheet	1N5221D-SiliconSupplies.pdf
Note	This datasheet PDF includes multiple part numbers: 1N5240D, 1N5221D. Please refer to the document for exact specifications by model.
Additional preview pages of the 1N5240D datasheet.

Product details

Features

Die Dimensions in µm (mils).
Tight tolerance reverse breakdown voltage.
Sharp reverse characteristics.
Low reverse current levels.
Small f orm factor.
High reliability gold back metal 330 (12.99) 235 (9.25) Ordering Information The following part suffixes apply:.
No suffix - Commercial grade die.
“H”.
Hi-rel grade die + MIL-STD-38534 Class H LAT.
“K”.
Hi-rel grade die + MIL-STD-38534 Class K LAT. LAT = Lot acceptance Test. For informa.
