SSM4513GM, N AND P-CHANNEL ENHANCEMENT MODE POWER MOSFET

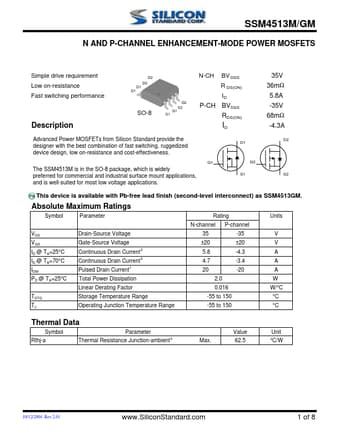

www.DataSheet4U.net SSM4513M/GM N AND P-CHANNEL ENHANCEMENT-MODE POWER MOSFETS Simple drive requirement Low on-resistance D1 D2 D1 D2 N-CH BV DSS

Applications

* and is well-suited for most low voltage applications. This device is available with Pb-free lead finish (second-level interconnect) as SSM4513GM. Absolute Maximum Ratings Symbol VDS VGS ID @ TA=25°C ID @ TA=70°C IDM PD @ TA=25°C TSTG TJ Parameter Drain-Source Voltage Gate-Source Voltage Continuou
