SS810G - 3-Pin Microprocessor Reset Circuits

Download the SS810G datasheet PDF. This datasheet also covers the SS809 variant, as both devices belong to the same 3-pin microprocessor reset circuits family and are provided as variant models within a single manufacturer datasheet.

Description

The SS809G and SS810G are low-power microprocessor (µP) supervisory circuits used to monitor power supplies in µP and digital systems.

They improve circuit reliability and reduce cost by eliminating external components.

Features

  • Ultra-low supply current 1µA (typ. ) Guaranteed reset valid to Vcc=0.9V Available in three output types: Open-drain active low (SS809N-xxGx) Push-pull active low (SS809-xxGx) Push-pull active high (SS810-xxGx) Power-on reset pulse width min. 140ms Internally fixed threshold 2.3V, 2.6V, 2.9V, 3.1V, 4.0V, 4.4V, 4.6V Tight voltage threshold tolerance: 1.5% Packaged in RoHS-compliant SOT-23-3 These devices provide valid signals in.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (SS809-SiliconStandard.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number SS810G
Manufacturer Silicon Standard
File Size 303.96 KB
Description 3-Pin Microprocessor Reset Circuits
Datasheet download datasheet SS810G Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SS8050 Silicon NPN Power Transistor INCHANGE
SS8050 NPN Epitaxial Silicon Transistor ON Semiconductor
SS8050 NPN Transistor Weitron Technology
SS8050 NPN Epitaxial Silicon Transistor Fairchild Semiconductor
SS8050 Silicon Epitaxial Planar Transistor GME

Other Datasheets by Silicon Standard

Part Number Description
SS809 3-Pin Microprocessor Reset Circuits
SS8218 Ultra160 Multi-mode LVD/SE SCSI Terminator
SS8219G Ultra320 Multi-mode LVD/SE SCSI Terminator

Full PDF Text Transcription

Click to expand full text

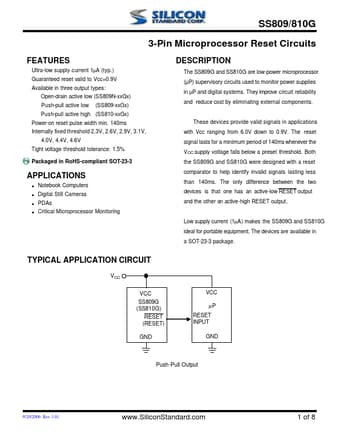

SS809/810G 3-Pin Microprocessor Reset Circuits FEATURES Ultra-low supply current 1µA (typ.) Guaranteed reset valid to Vcc=0.9V Available in three output types: Open-drain active low (SS809N-xxGx) Push-pull active low (SS809-xxGx) Push-pull active high (SS810-xxGx) Power-on reset pulse width min. 140ms Internally fixed threshold 2.3V, 2.6V, 2.9V, 3.1V, 4.0V, 4.4V, 4.6V Tight voltage threshold tolerance: 1.5% Packaged in RoHS-compliant SOT-23-3 These devices provide valid signals in applications with Vcc ranging from 6.0V down to 0.9V. The reset signal lasts for a minimum period of 140ms whenever the VCC supply voltage falls below a preset threshold. Both the SS809G and SS810G were designed with a reset comparator to help identify invalid signals lasting less than 140ms.
