SS6610G, (SS6610G / SS6611G) High-efficiency Synchronous Step-up DC/DC Converter

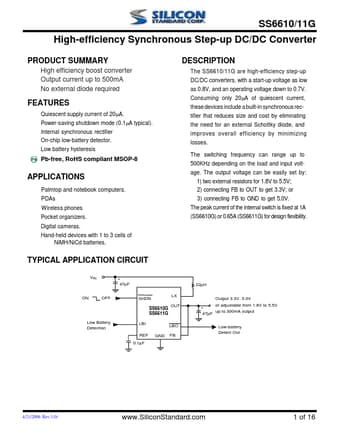

www.DataSheet4U.net SS6610/11G High-efficiency Synchronous Step-up DC/DC Converter PRODUCT SUMMARY High efficiency boost converter Output current up

Applications

* Palmtop and notebook computers. PDAs Wireless phones Pocket organizers. Digital cameras. Hand-held devices with 1 to 3 cells of NiMH/NiCd batteries. TYPICAL APPLICATION CIRCUIT VIN + 47µF OFF SHDN SS6610G SS6611G Low Battery Detection LBI REF 0.1µF GND LX OUT 22µH Output 3.3V, 5.0V or adjustable fr
