EFR32BG21 - Blue Gecko Wireless SoC

Product Overview

Silicon Labs

📥 Download Datasheet

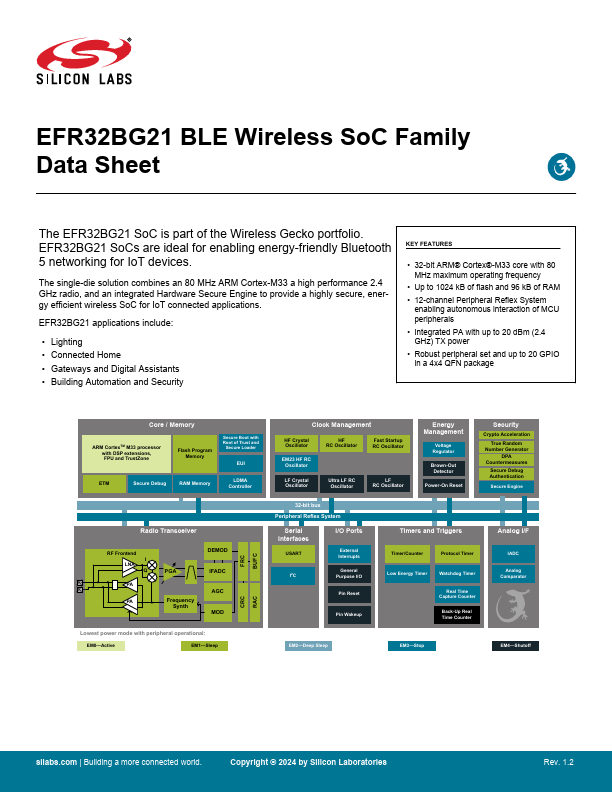

EFR32BG21 Blue Gecko Wireless SoC by Silicon Labs - Datasheet Preview — Datasheet preview – EFR32BG21

Datasheet Details

Part number	EFR32BG21
Manufacturer	Silicon Labs
File Size	1.88 MB
Description	Blue Gecko Wireless SoC
Datasheet	EFR32BG21 Datasheet

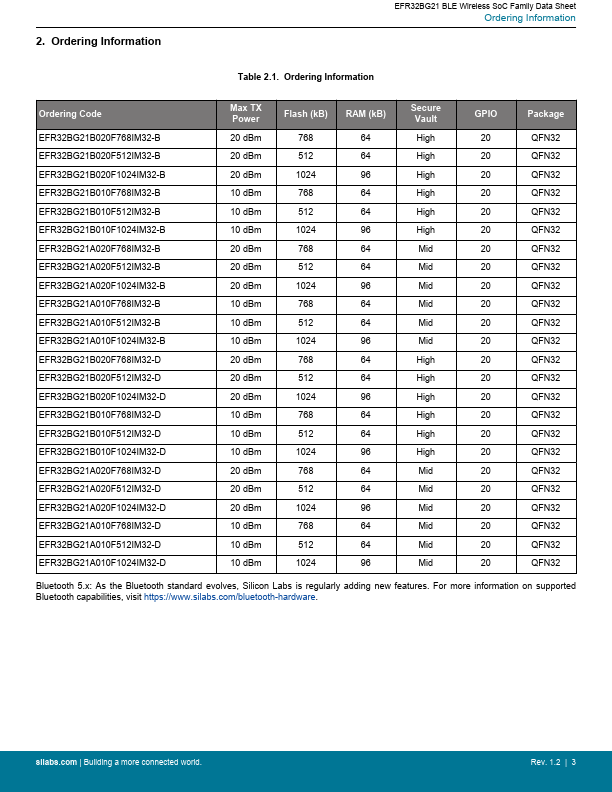

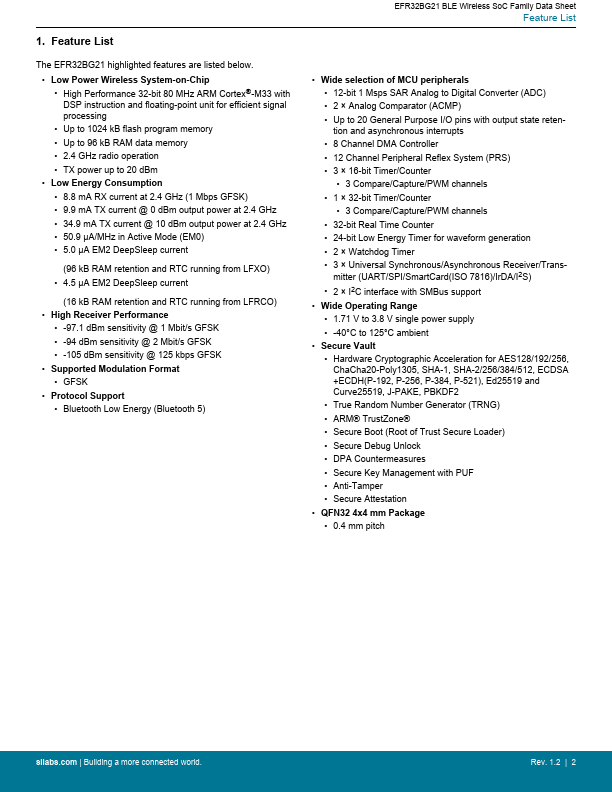

Additional preview pages of the EFR32BG21 datasheet.

Product details

Features

32-bit ARM® Cortex®-M33 core with 80 MHz maximum operating frequency.
Up to 1024 kB of flash and 96 kB of RAM.
12-channel Peripheral Reflex System enabling autonomous interaction of MCU peripherals.
Integrated PA with up to 20 dBm (2.4 GHz) TX power.
Robust peripheral set and up to 20 GPIO in a 4x4 QFN package Core / Memory ARM CortexTM M33 processor with DSP extensions, FPU and TrustZone Flash Program Memory Secure Boot with Root of Trust and Se.
