SI8230, SI823X - 0.5 AND 4.0 AMP isolated driver

Silicon Laboratories

📥 Download Datasheet

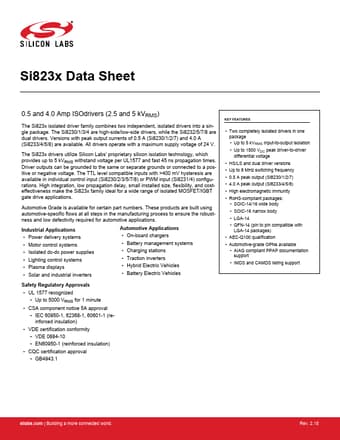

SI8230 Datasheet Preview — This datasheet PDF includes multiple part numbers: SI8230, SI823X. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	SI8230, SI823X
Manufacturer	Silicon Laboratories
File Size	943.13 KB
Description	0.5 AND 4.0 AMP isolated driver
Datasheet	SI823X_SiliconLaboratories.pdf
Note	This datasheet PDF includes multiple part numbers: SI8230, SI823X. Please refer to the document for exact specifications by model.

SI8230 Product details

Features

Two completely isolated drivers in one package.
Up to 5 kVRMS input-to-output isolation.
Up to 1500 VDC peak driver-to-driver differential voltage.
HS/LS and dual driver versions.
Up to 8 MHz switching frequency.
0.5 A peak output (Si8230/1/2/7).
4.0 A peak output (Si8233/4/5/8).
High electromagnetic immunity.
RoHS-compliant packages:.
SOIC-14/16 wide body.
SOIC-16 narrow body.
LGA-14.
