SY8892 2A Synchronous Step Down Regulator

SY8892 Description

SY8892 High Efficiency, 1.5MHz 2A Synchronous Step Down Regulator General .
The SY8892 is a high efficiency 1.

SY8892 Features

* 2.5V to 5.5V Input Voltage Range
* 55µA Low Quiescent Current
* Low RDS(ON) for Internal Switches (Top/Bottom): 125mΩ /75mΩ
* High Switching Frequency 1.5MHz Minimizes the External Components
* Internal Soft-start Limits the Inrush Current
* 100% Dropout Operation
* Pow

SY8892 Applications

* Set Top Box
* USB Dongle
* Media Player

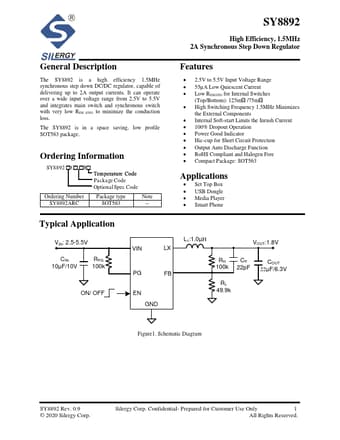

* Smart Phone Typical Application VIN: 2.5-5.5V CIN 10µF/10V RPG 100k ON/ OFF VIN LX PG FB EN GND L1:1.0µH VOUT:1.8V RH Cff 100k 22pF COUT 22µF/6.3V RL 49.9k Figure1. Schematic Diagram SY8892 Rev. 0.9 © 2020 Silergy Corp.

📥 Download Datasheet

Preview of SY8892 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SY8892
Manufacturer
Silergy
File Size
479.85 KB
Datasheet
SY8892-Silergy.pdf
Description
2A Synchronous Step Down Regulator
